AFE Series Sensor Connector Terminal Blocks

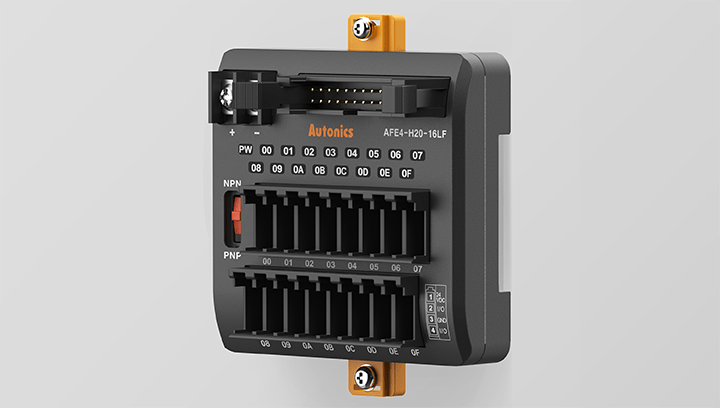

The AFE series sensor connector terminal blocks can be used to connect Autonics CNE series sensor connectors to save installation time and work. Additional wire stripping or tools are not required. The compact size allows space saving installation. NPN/PNP selection is possible using the NPN/PNP selection switch.

Main Feature

  • Save installation time and work with Autonics CNE series sensor connectors
  • Wire stripping and tools not required
  • Compact, space-saving design
  • LED Operation status indicator
  • DIN rail mount and screw mount installation
  • Switch between NPN and PNP input with switch
simultaneous npn-pnp-open-collector-output

NPN/PNP Input Selection (Switch type)

operation-indicator

Operation Indicator

screw_mount

Screw Mount

din_Rail_mount

DIN Rail Mount

Model
Model
Terminal Blocks Side Controller Side Mounting Method Operation Indicator Input Logic Model
Connector Type The Number of Connector Pins The Number of Connector Pins Connector (Controller)
Sensor Connector 4pin Socket * 16-Pin 20-Pin HIF3BA-20PA-2.54DSA DIN Rail/
Screw Mount		 Y NPN/ PNP
switch		 AFE4-H20-16LF
32-Pin 40-Pin HIF3BA-40PA-2.54DSA AFE4-H40-32LF
Operation Status Indicators

Users can easily check the status of the terminals with the power indicator (red LED) and operation indicators (blue LED).

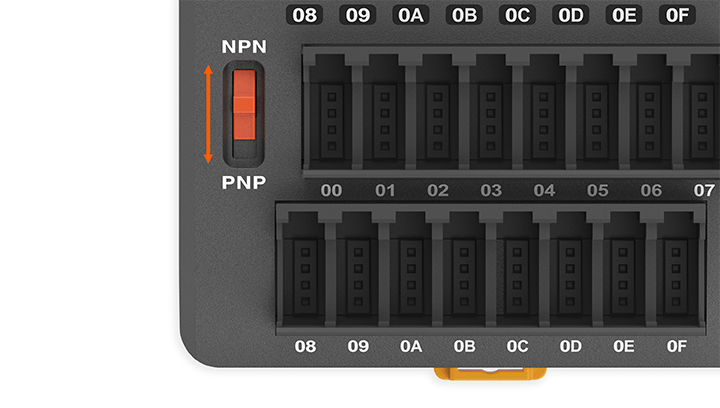

Convenient Conversion of Input Logic (NPN/PNP)

Users can select NPN/PNP input selection easily via selection switch.

Flexible Mounting Methods

The AFE series supports both DIN rail mount and screw mount methods, for application in diverse environments.
