AFR Series Interface Terminal Blocks (Rising Clamp Type)

The AFS series interface terminal block is ideal for PLCs and motion device input and output. The terminal block features screw connection type for easy and secure connection. The compact design with 2-line arrangement allows flexible installation in limited spaces.

Main Feature

  • Rising clamp type connection method offers easy and durable connection
  • Space-saving design with 5 mm terminal pitch and 2-line relay arrangement
  • Ideal for PLCs and motion device I/O
  • DIN rail mount and screw mount installation

※ Autonics CH/CO series I/O terminal block cables are recommended for best performance.

screw-connection

Rising Clamp Type

slim-size

Slim type

operation-indicator

Operation Indicator

screw_mount

Screw Mount

din-rail-mount

DIN Rail Mount

Model
Type The Number of Terminals Points The Number of Connector Pins Connector (Controller) Mounting Method Operation Indicator Input Logic Model
Rising Clamp 20-Point 20-Pin XG4A-2031 DIN Rail/
Screw Mount		 – – AFR-H20
16-Point*¹ Y NPN AFR-H20-LN
Y PNP AFR-H20-LP
26-Point 26-Pin XG4A-2631 – – AFR-H26
40-Point 40-Pin HIF3BA-40PA-2.54DSA AFR-H40
32-Point*² Y NPN AFR-H40-LN
Y PNP AFR-H40-LP
50-Point 50-Pin HIF3BA-50PA-2.54DSA – – AFR-H50
HIF3BB-50PA-2.54DSA AFR-H50B
Various Lineup for Flexible Application

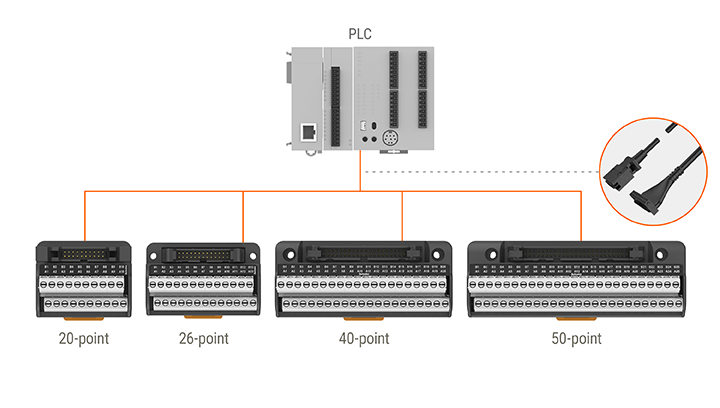

The AFR series allows the flexibility for user’s needs and applications with various lineup.

Simple and Secure Connection Method

The AFR series feature rising clamp type connection, with built-in screws for simple and easy connection. This connection method offers high vibration resistance and secure and durable connection.

Space-saving Design with Slim Size

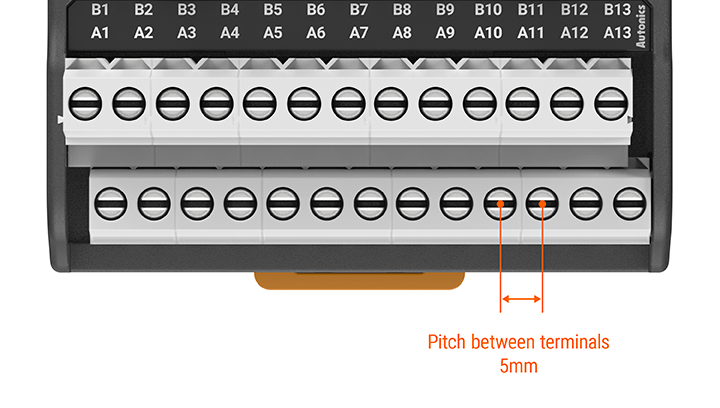

The AFR series feature space-saving design with 5 mm terminal pitch for connecting more devices in limited space.

Operation Status Indicators

Users can easily check the status of the terminals with the power indicator (red LED) and operation indicators (blue LED).
* Only on AFL-H20/40-LN(P) models

Flexible Mounting Methods

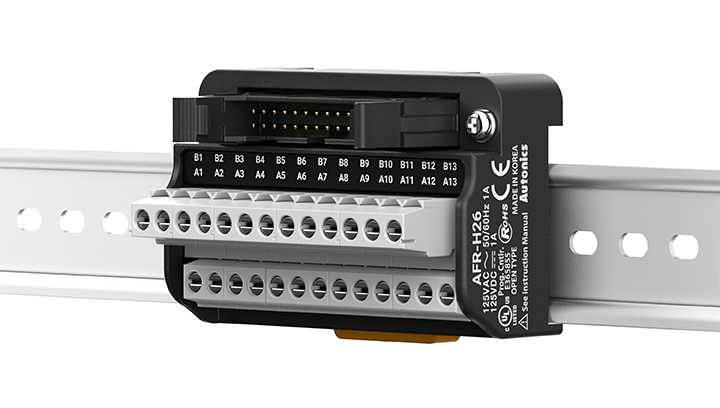

The AFR series supports both DIN rail mount and screw mount methods, for application in diverse environments.
