AFS Series Interface Terminal Blocks

The AFS series interface terminal block is ideal for PLCs and motion device input and output. The terminal block features screw connection type for easy and secure connection. The compact design with 2-line arrangement allows flexible installation in limited spaces.

Main Feature

  • Screw type connection for stable and reliable connection
  • Ideal for PLCs and motion device I/O
  • Compact, space-saving design
  • Excellent environment resistance against dust and debris by hinged cover
  • DIN rail mount and screw mount installation

※ Autonics CH/CO series I/O terminal block cables are recommended for best performance.

screw_type

Screw Type

screw_mount

Screw Mount

din-rail-mount

DIN Rail Mount

Model
Type The Number of Terminals Points The Number of Connector Pins Connector (Controller) Mounting Method Arrangement Model
Screw 20-Point 20-Pin HIF3BA-20PA-2.54DSA DIN Rail/
Screw Mount		 1-Line AFS-H20
26-Point 26-Pin XG4A-2631 AFS-H26
40-Point 40-Pin HIF3BA-40PA-2.54DSA AFS-H40
XG4A-4031 2-Line AFS-HB40
50-Point 50-Pin HIF3BA-50PA-2.54DSA 1-Line AFS-H50
Various Lineup for Flexible Application

The AFS series allows the flexibility for user’s needs and applications with various lineup.

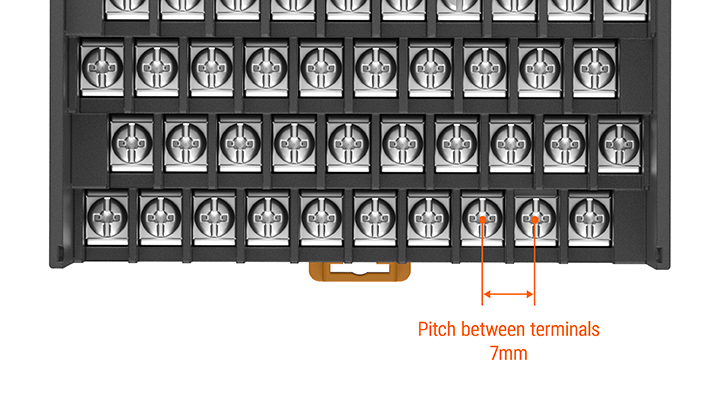

Space-saving Design with Slim Size

The AFS series feature space-saving design with 7 mm terminal pitch for connecting more devices in limited space

Flexible Mounting Methods

The AFS series supports both DIN rail mount and screw mount methods, for application in diverse environments.
