※ 60 mm, 86mm Built-in Brake Type model have been added to the lineup
- Closed loop system for precise real-time position control
- High speed and high torque drive without missed steps
- Supports 200-240 VAC AC power supply
- Easy operation setting with external adjuster (Gain, speed filter, in-position, resolution)
- 7-segment display for alarm/status reading
- Torque control mode
- Auto current down mode supported
- Built-in brake type motors available
- Built-in gear/ rotary actuator type motors available
Closed-Loop System
No Hunting
Quick Response
High Torque
AC Power
Torque Control Mode
Built-in Brake
Closed Loop Stepper System Set Scheme
- Standard Type
| Power | Driver signal input | Motor frame size | Motor | Driver | Set |
|---|---|---|---|---|---|
| AC | Pulse input type | 60mm, 86mm | AiA-M-□MA | AiSA-D-□MA | AiSA-□MA |
| AiA-M-□LA | AiSA-D-□LA | AiSA-□LA |
- Built-in Brake Type
| Power | Driver signal input | Motor frame size | Motor | Driver | Set |
|---|---|---|---|---|---|
| AC | Pulse input type | 60mm, 86mm | AiA-M-□MA-B | AiSA-D-□MA-B | AiSA-□MA-BA |
| AiA-M-□LA-B | AiSA-D-□LA-B | AiSA-□LA -B |
- Built-in Gear Type
| Power | Driver signal input | Motor frame size | Motor | Driver | Set |
|---|---|---|---|---|---|
| AC | Pulse input type | 60mm, 86mm | AiA-M-□MA-G5 | AiSA-D-□LA | – |
| AiA-M-□MA-G7.2 | |||||
| AiA-M-□MA-G10 |
※ The built-in gear type is not available as a SET, please purchase a motor/driver separately.
- Built-in Rotary Actuator Type
| Power | Driver signal input | Motor frame size | Motor | Driver | Set |
|---|---|---|---|---|---|
| AC | Pulse input type | 60mm | AiA-M-60MA-R5 | AiSA-D-60LA | – |
| AiA-M-60MA-R7.2 | |||||
| AiA-M-60MA-R10 |
※ The built-in rotary actuator type is not available as a SET, please purchase a motor/driver separately.
Closed Loop Stepper Motor Control
The stepper motor system offers accurate and precise position control through feedback from the integrated encoder without the hassle of tuning and vibration of conventional servo motors.
AC Power Supply
AC power supply closed loop stepper motor system can maintain higher torque during high speed drive compared to DC type motors. The motors also do not require separate power supplies, allowing more flexible installation options.
Auto Current Down Mode
Auto current down mode reduces the electric current when the motor stops (no load) to minimize heat generation.
Torque Control Mode
Torque control mode allows accurate operation of machinery by maintaining the initial torque set during motor operation.

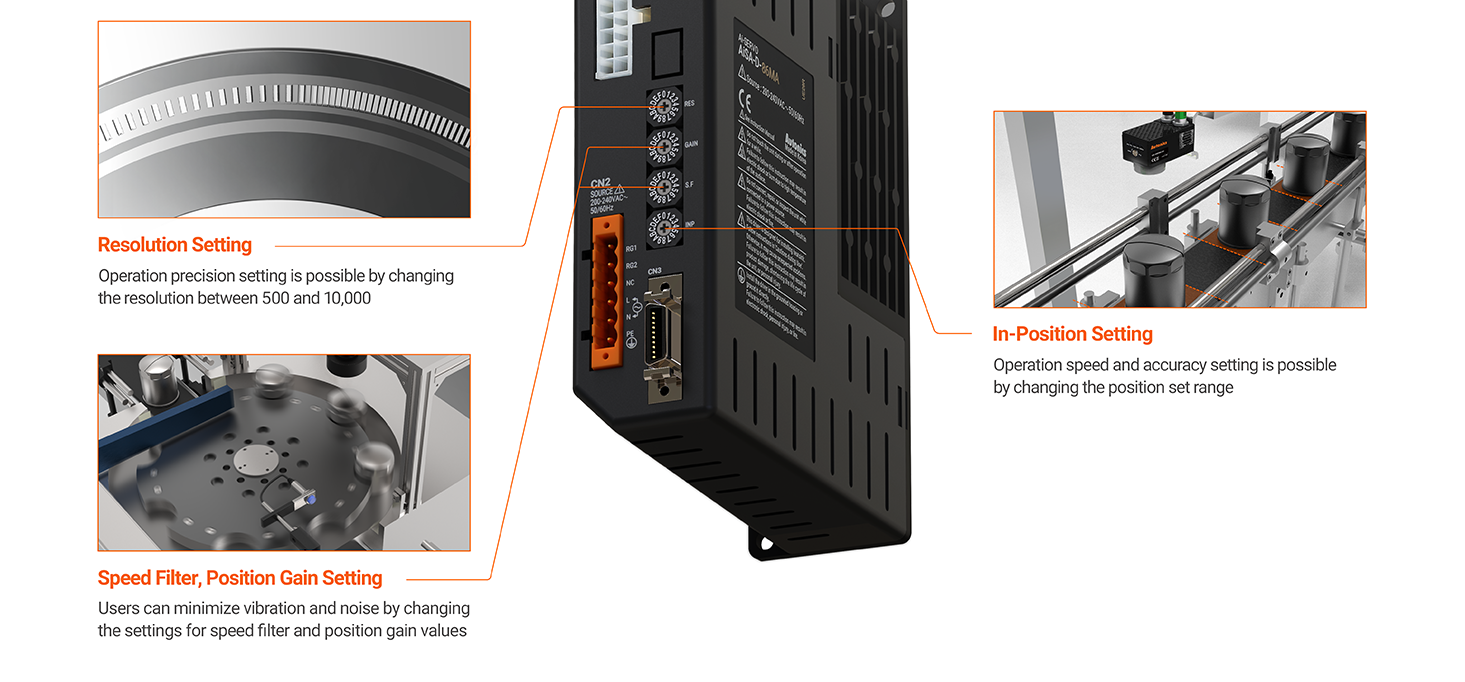

Easy Tuning Using External Adjuster
Users can easily change operation settings and range directly using the external adjuster
Built-in Brake Type Motors Available
The built-in brake type motor and drivers allow safer control of vertical loads. The brakes are located towards the rear and the separate brake connector allows easy connection.
