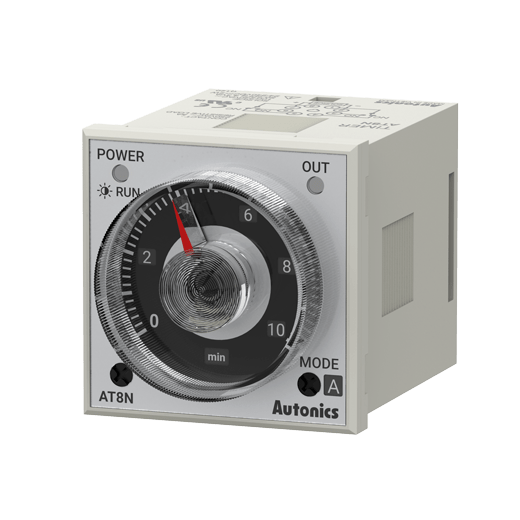

ATN Series Multi-Function Analog Timers

The ATN series multi-function analog timers feature 6 output operation modes and 12 time setting ranges for application in diverse timing control tasks. The timers also feature a wide time setting range between 0.05 seconds to 100 hours. Simple time configuration and operation is possible with the analog dial control. The ATN series is available in 8-pin or 11-pin plug models.

Main Feature

  • 6 output operations
  • 16 time setting ranges
  • Wide time setting range : 0.05s to 100h
  • Simple time setting, time range, and output operation configuration with analog dial and switches
  • LED operation indicator and output indicator
  • Power supply
    • – 100-240VAC 50/60 Hz, 24-240VDC (AC/DC universal type)
    • – 24VAC 50/60 Hz, 24 VDC (AC/DC universal type)
    • – 12VDC (DC type)
