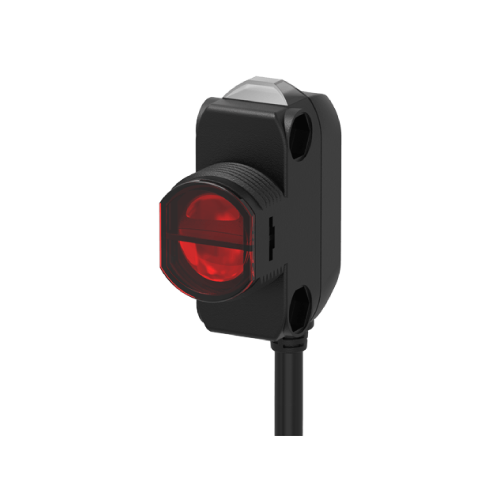

BH Series Front/Side Mount Photoelectric Sensors

The BH series photoelectric sensors are capable of front mounting using M18 nut and fastening cap or side mounting using M3 bolt screw and nuts. The flexible installation options allow easy application in various industrial settings. The sensors can produce individual or simultaneous NPN and PNP open collector outputs by simple wire configuration. The IP67 protection structure provides stable and error-free operation even in wet or dusty environments.

Main Feature

  • Front mounting (M18 nut) or side mounting (M3 screws)
  • Simultaneous NPN/PNP open collector output
  • Sensing distance
    • Through-beam type : 20m
    • Retroreflective type : 4m
    • Diffuse reflective type : 1m, 300mm
  • Compact size : W14mm×H34.5mm×L28mm
  • Mirror Surface Rejection (MSR) function allows stable detection of highly reflective targets (retroreflective type only)
  • Sensitivity adjuster included
  • Light ON/Dark ON operation mode switch
  • Operation indicator (red LED) and stability indicator (green LED)
  • Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit
  • Mutual interference prevention function (except through-beam type)
  • IP67 protection structure (IEC standard) (patent) *

*Korea Patent Registration 10-1409233

Front/Side Mounting

Simultaneous NPN/PNP Open Collector Output

Long Sensing Distance

Compact Size

Mirror Surface Rejection (MSR)

Simple Operation Mode Switching

Protection Rating

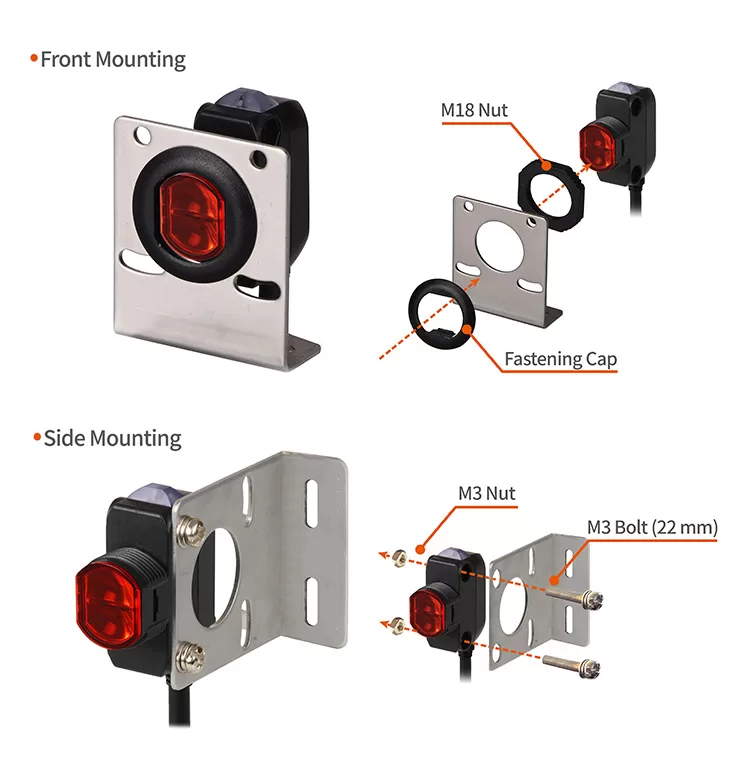

Front/Side Mounting Sensors

The BH series photoelectric sensors are capable of both front mounting (using M18 nut) and Side mounting (using M3 screws) for flexible installation in diverse applications.

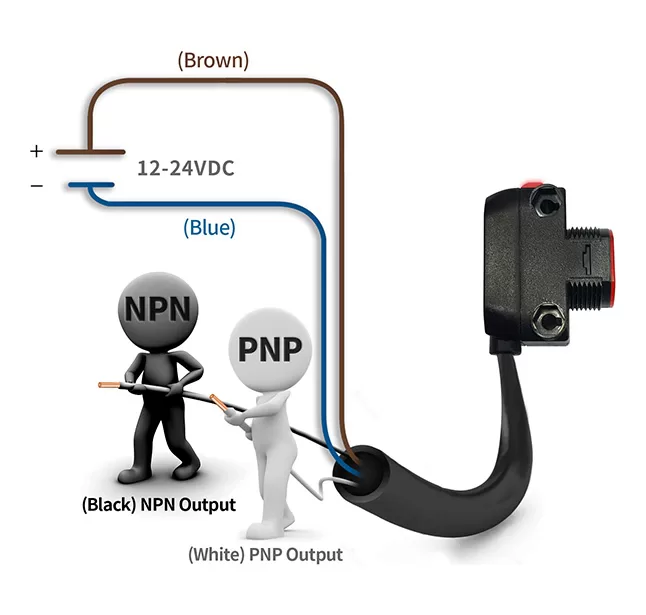

Simultaneous NPN/PNP Open Collector Output

Depending on wire configuration, the sensors can produce individual NPN or PNP outputs Or simultaneous NPN and PNP outputs

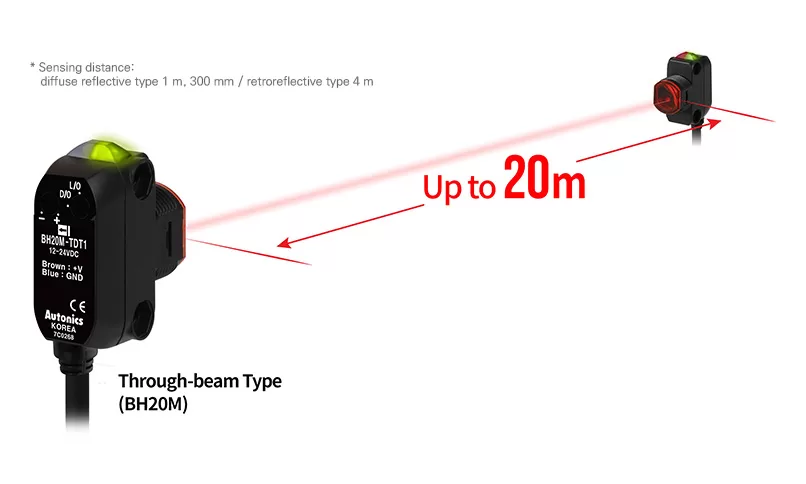

Long Sensing Distance Up to 20m

The through-beam type models feature long sensing distances up to 20m.

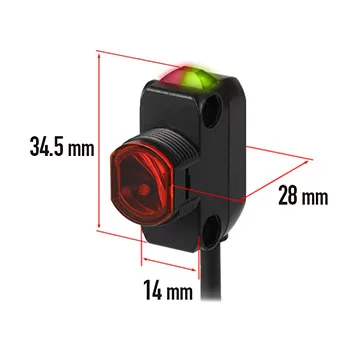

Compact Size

The compact sized sensors (W14×H34.5×L28mm) can be easily installed in tight or limited spaces.

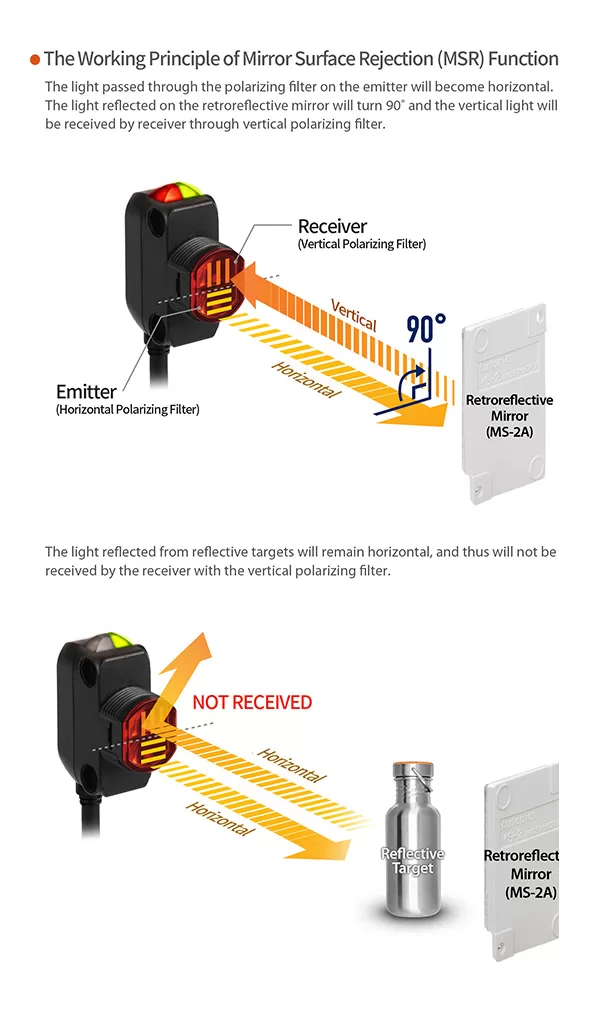

Mirror Surface Rejection (MSR) Function (Retroreflective Type)

The retroreflective type models feature built-in polarizing filters allowing the units to only receive light from reflectors.
This function allows stable detection of highly reflective targets including metals, mirrors, etc.

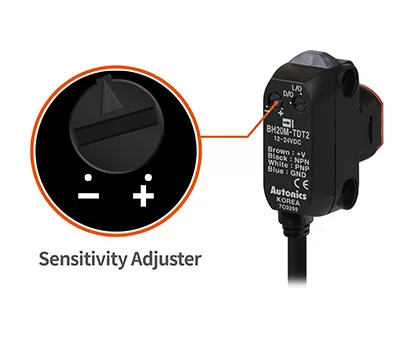

Sensitivity Adjuster Included

The attached sensitivity adjuster allows users to easily adjust the sensitivity without repositioning the sensors.

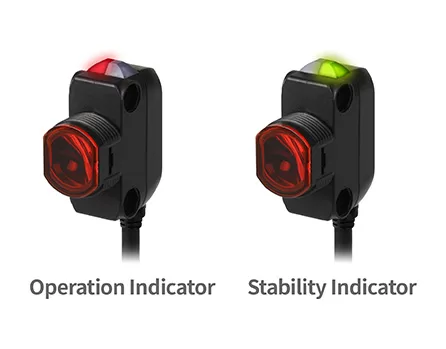

Various Status Indicators

Operation indicator (red LED) and stability indicator (green LED) allows users To quickly identify the operation status of the sensors.

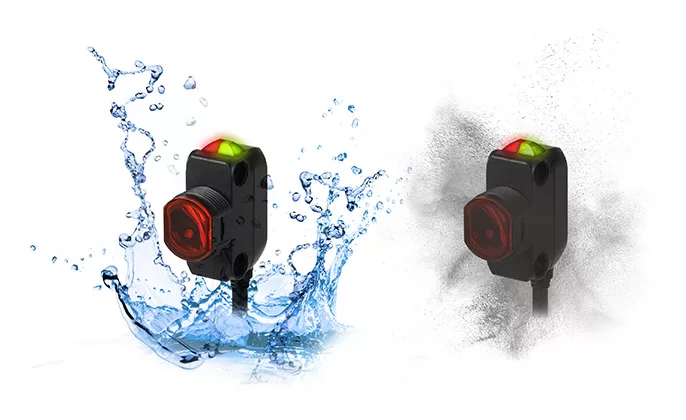

IP67 Protection Structure

IP67 protection structure allows stable and error-free operation even in wet or dusty environments.

Application

  • Various sensing distance lineup : 30 mm, 50 mm models
  • High speed response time under 1 ms
  • Sensitivity adjustable model available
  • Switch between Light ON and Dark ON modes using control wire

U-Shaped Type

Operation Mode Switch

Control Wire for
Light ON/Dark ON

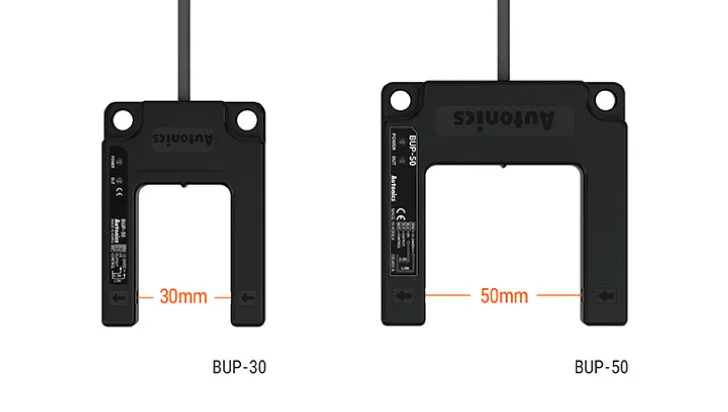

Various Sensing Distance

Sensing distance 30 mm (BUP-30), 50 mm (BUP-50) models are available for various applications.

Diverse Lineups for User Convenience

Sensitivity adjustable models and TE Connectivity 172504-1 compatible models offer high flexibility in various environment.

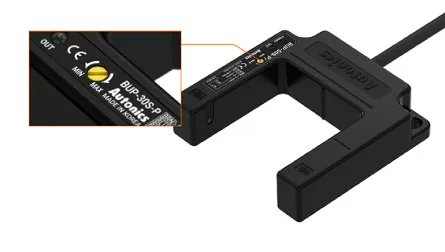

Model : BUP-30S-P
Sensitivity Adjustable Models

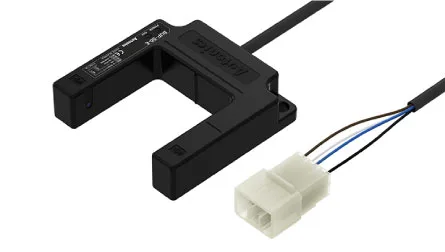

Model : BUP-30-E, BUP-50-E
Cable Connector Type (Compatible
with TE Connectivity 172504-1)
