- Ultra-slim width of only 7.2 mm
– W 7.2 x H 18.6 x L 9.5 mm (through-beam type)
– W 7.2 x H 24.6 x L 10.8 mm (retroreflective type, convergent reflective type - Detection methods and minimum target size
– Through-beam type (BTS1M): Ø2 mm
– Retroreflective type (BTS200): Ø2 mm (at distance 100 mm)
– Convergent reflective type (BTS15/BTS30): Ø0.15 mm (at distance 10 mm) - Detecting distance may vary by environmental factors
- Maximum detection distance: 1 m (through-beam type)
- Stability indicator (green LED) and operation indicator (red LED)
- Stainless steel 304 mounting brackets
- IP67 protection structure (IEC standard)
Ultra-slim Size
Max. Distance
Detect Tiny Targets
Protection Rating
Ultra-Slim Size
The ultra-compact sensors measure just 7.2mm wide, making them ideal for installation in limited spaces or small machinery.
Detect Tiny Targets as Small as Ø0.15mm
The sensors can detect tiny targets as small as Ø0.15mm, including metallic wires, semiconductor chips, thin thermocouples, and more.
Maximum Detextion Distance of 1M
The compact sensors are capable of detectiong items at distances up to 1 m. (through-beam type)

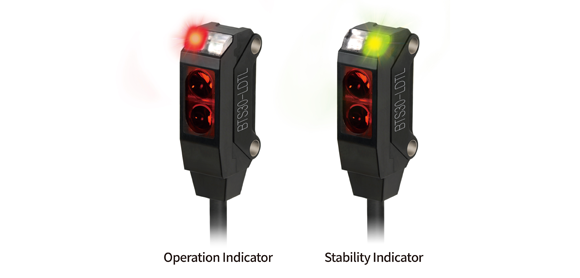

Check Operation Status
The sensors are equipped with stability indicators (green LED) and operation indicators (red LED)
Visible Detection Spot
Visible red light source allows users to easily check sensing spots for installation.
IP67 Protection Structure
IP67 protection structure allows the units to be safely applied in environments with dust or water.
