Constant advances achieving significant improvement of sensing performance
UL , CE , Korean S Mark Approved
CE : EMC Directive
UL : Recognition
Korea’s S-mark certification : NPN output types of connector type only
Features
Stable sensing over long and short periods [FX-301, FX-301-HS, FX-305]
In addition to a “four-chemical emitting element” which suppresses changes in the light emitting element over time so that a stable level of light emission can be maintained over long periods, a “APC (Auto Power Control) circuit” has also been adopted afresh.
The light emitting amount can be controlled in minute degrees so that even changes occurring over very short periods can be handled, allowing stable sensing performance by suppressing deviations in light emitting amounts caused by changes in the ambient environment that could not previously be suppressed.

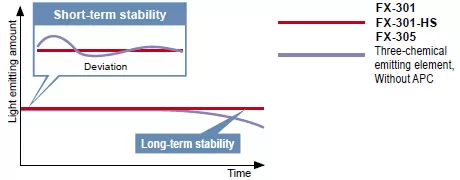

■Stable sensing comparison
Light-emitting amount selection [FX-301, FX-301-HS, FX-305]

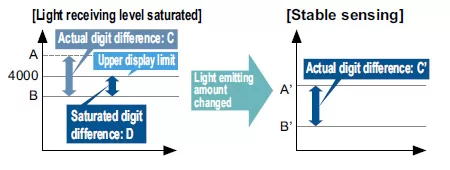

If the light receiving level becomes saturated during close-range sensing or when sensing transparent or minute objects, you can adjust the light emitting amount of the sensor to stabilize sensing without needing to change the response time. Sensing that previously required the response time or fibers to be changed can now be set much more easily using this function.
Ultra high-speed 35 μs response [FX-301-HS, FX-305]
Ultra high-speed 35 μs response.
Even small objects moving at high speeds can be sensed.
In addition, at 65 μs the FX-301 standard type and FX-305 high-function type is also twice as fast as previous models.
Large display 9999 [FX-305]
Large display with 4 digits (9999). With a greater difference in digit value than previous models, threshold values can be set in units of 1 digit up to maximum 9999.
Threshold setting can now be done more easily and accurately.
Even beginners can quickly learn how to use the MODE NAVI [All models]
MODE NAVI uses six indicators to display the amplifier’s basic operations. The current operating mode can be confirmed at a glance, so even a first time user can easily operate the amplifier without becoming confused.
Easy confirming of threshold value settings [FX-301, FX-301-HS, FX-305]
The threshold value can be confirmed by turning the jog switch even during RUN mode.
Order guide
Amplifiers
Quick-connection cable is not supplied with the amplififier. Please order it separately.
| Type | Appearance | Model No. | Emitting element |
Output |
|---|---|---|---|---|
| Standard type |
 |
FX-301 | Red LED | NPN open-collector transistor |
| FX-301P | PNP open-collector transistor | |||
| FX-301B | Blue LED | NPN open-collector transistor | ||
| FX-301BP | PNP open-collector transistor | |||
| FX-301G | Green LED | NPN open-collector transistor | ||
| FX-301GP | PNP open-collector transistor | |||
| FX-301H | Infrared LED | NPN open-collector transistor | ||
| FX-301HP | PNP open-collector transistor | |||
| High-speed type |
FX-301-HS | Red LED | NPN open-collector transistor | |
| FX-301P-HS | PNP open-collector transistor | |||
| High-function type |
 |
FX-305 | Red LED | NPN open-collector transistor |
| FX-305P | PNP open-collector transistor |
Quick-connection cables For FX-301(-HS)/B/G/H
Quick-connection cable is not supplied with the amplififier. Please order it separately.
| Type | Model No. | Description | |
|---|---|---|---|
| Main cable (3-core) |
CN-73-C1 | Length: 1 m 3.281 ft | 0.2 mm2 3-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-73-C2 | Length: 2 m 6.562 ft | ||
| CN-73-C5 | Length: 5 m 16.404 ft | ||
| Sub cable (1-core) |
CN-71-C1 | Length: 1 m 3.281 ft | 0.2 mm2 1-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-71-C2 | Length: 2 m 6.562 ft | ||
| CN-71-C5 | Length: 5 m 16.404 ft | ||
(Note): The material of Quick-connection cable will be changed from production in March 2013, as soon as the previous ones are shipped out.
・Conductor cross-sectional area has been changed from 0.15mm2 to 0.2mm2.
・Sheath diameter has been changed from ø3.0mm to ø3.3mm.
Main cable
CN-73-C□
Sub cable
CN-71-C□
Quick-connection cables For FX-305
Quick-connection cable is not supplied with the amplififier. Please order it separately.
| Type | Model No. | Description | |
|---|---|---|---|
| Main cable (4-core) |
CN-74-C1 | Length: 1 m 3.281 ft | 0.2 mm2 4-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-74-C2 | Length: 2 m 6.562 ft | ||
| CN-74-C5 | Length: 5 m 16.404 ft | ||
| Sub cable (2-core) |
CN-72-C1 | Length: 1 m 3.281 ft | 0.2 mm2 2-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-72-C2 | Length: 2 m 6.562 ft | ||
| CN-72-C5 | Length: 5 m 16.404 ft | ||
(Note): The material of Quick-connection cable will be changed from production in March 2013, as soon as the previous ones are shipped out.
・Conductor cross-sectional area has been changed from 0.15mm2 to 0.2mm2.
・Sheath diameter has been changed from ø3.0mm to ø3.3mm.
Main cable
CN-73-C□
Sub cable
CN-71-C□
End plates are not supplied with the amplifier. Please order them separately when the amplifiers are mounted in cascade.
| Appearance | Model No. | Description |
|---|---|---|
 |
MS-DIN-E | When cascading multiple amplifiers, or when it moves depending on the way it is installed on a DIN rail, these end plates clamp amplifiers into place on both sides. Make sure to use end plates when cascading multiple amplifiers together. [Two pcs. per set] |
Discontinued products
| Discontinued product | Recommended substitute | ||||
|---|---|---|---|---|---|
| Product number/Part number | Last time buy | Product number/Part number | Product name | Remark | |
| Product number: FX-302 Part number: FX-302 |
September 30, 2005 To be discontinued |
 |
Product number:
FX-305 Part number: FX-305
|
Digital Fiber Sensor FX-300
|
The quick-connection cable must be changed to the CN-74-C* (4-core) / CN-72-C* (2-core) that is used with the FX-305.
|
| Product number: FX-302P Part number: FX-302P |
September 30, 2005 To be discontinued |
|
Product number:
FX-305P Part number: FX-305P
|
Digital Fiber Sensor FX-300
|
The quick-connection cable must be changed to the CN-74-C* (4-core) / CN-72-C* (2-core) that is used with the FX-305.
|
| Product number: FX-303 Part number: FX-303 |
September 30, 2005 To be discontinued |
|
Product number:
FX-301 Part number: FX-301
|
Digital Fiber Sensor FX-300
|
–
|
| Product number: FX-303P Part number: FX-303P |
September 30, 2005 To be discontinued |
|
Product number:
FX-301P Part number: FX-301P
|
Digital Fiber Sensor FX-300
|
–
|
