1.6 times longer sensing range than conventional models
Significantly improved stability and usability
CE Approved
Features
Sensing range up to 1.6 times
Ample sensing distance even with thin fiber
The sensing range of the thin reflective type fiber is about 1.6 times longer than that of a conventional product (the sensing range of the standard reflective type fiber is about 1.4 times longer). This adds extra flexibility to the sensor layout.
| Fiber | Sensing range (STD mode) | Rate of increase in sensing range | |
|---|---|---|---|
| FX-551 | FX-501 | ||
| FT-31 | 480mm 18.898 in | 315mm 12.402 in | 152% |
| FT-42 | 1,470mm 57.874 in | 1,130mm 44.488 in | 130% |
| FD-41 | 200mm 7.874 in | 125mm 4.921 in | 160% |
| FD-61 | 620mm 24.409 in | 450mm 17.717 in | 138% |

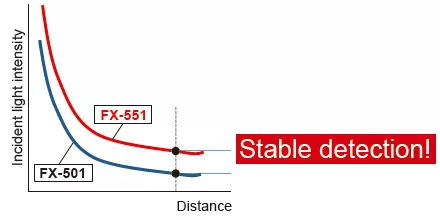

When the hysteresis is the same, the higher incident light intensity results in more stable detection.
When the hysteresis is the same, the higher incident light intensity results in more stable detection.
| Easy adjustment of beam axis
Thanks to the high emission power, a slight deviation of beam axis causes no problem. It is ideal for use in dusty areas* or for detection through an extremely small slit. |
 |
Equipped with a mode to minimize the effect of ambient light When setting to activate the environment resistance mode in the emission frequency setting, the ambient illuminance for LED lights becomes about 2.5 times higher than that in the normal mode. This reduces erroneous detections caused by LED lights. |
 |
Simplified functions for improved operation ease
The FX-500 series and newer models are equipped with only basic functions for improved ease of use. No matter which model you select, they are all easy to use.
MODE NAVI + Direct setting
MODE NAVI uses three indicators and a dual display to show the amplifier’s basic operations. The current operation mode can be confirmed at a glance, so even a first-time user can easily operate the amplifier.
■NAVI display (lights off during RUN mode)

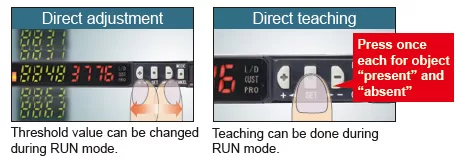

■Direct setting
■List of functions in PRO mode
| PRO 1 | Response time setting, timer setting, shift amount setting |
|---|---|
| PRO 2 | Teaching lock setting, digital display item setting, digital display turning setting, Eco setting |
| PRO 3 | Display adjustment setting, reset setting, emission frequency setting, threshold value tracking setting |
No need to specify a main unit or sub unit

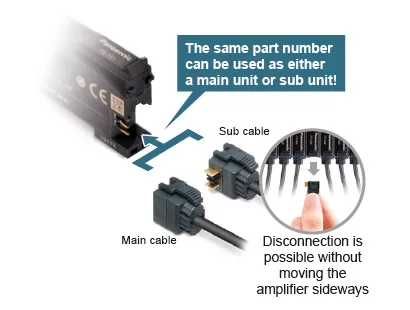

All FX-500 amplifiers can be used as either a main unit or a sub unit. Just use a main cable or a sub cable to distinguish the two. This reduces the costs of inventory management.
Wire-saving, space-saving

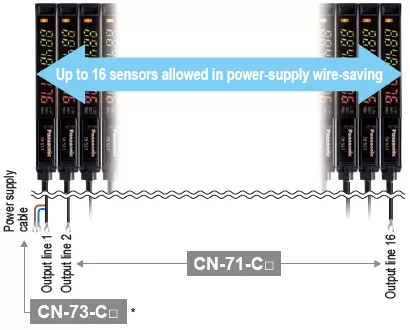

The quick-connection cables enable reduction in wiring. The connections and man-hours required for the relay terminal block setup can be reduced and valuable space is saved.
* Connection of up to 16 units with FX-500 / FX-400 / DPS-400 / LS-400 is possible.
Note: FX-550 series is not equipped with a communication function.
When connecting to the host communication units SC-GU3 series, SC-GU2-C and SC-GU1-485, please use FX-500 series.
Order guide
Amplifiers
Quick-connection cable is not supplied with FX-501(P) and FX-502(P). Please order it separately.
| Type | Appearance | Model No. | Emitting element | Output |
|---|---|---|---|---|
| Connector type |  |
FX-551 | Red LED | NPN open-collector transistor |
| FX-551P | PNP open-collector transistor | |||
| Cable type |  |
FX-551-C2 | NPN open-collector transistor | |
| FX-551P-C2 | PNP open-collector transistor |
Quick-connection cables
Quick-connection cable is not supplied with the amplifier. Please order it separately.
| Type | Model No. | Description | |
|---|---|---|---|
| Main cable (3-core) |
CN-73-C1 | Length: 1 m 3.281 ft | 0.2 mm2 3-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-73-C2 | Length: 2 m 6.562 ft | ||
| CN-73-C5 | Length: 5 m 16.404 ft | ||
| Sub cable (1-core) |
CN-71-C1 | Length: 1 m 3.281 ft | 0.2 mm2 1-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in Connectable to a main cable up to 15 cables. |
| CN-71-C2 | Length: 2 m 6.562 ft | ||
| CN-71-C5 | Length: 5 m 16.404 ft | ||
Main cable
CN-73-C□
Sub cable
CN-71-C□
End plates
End plates are not supplied with the amplifier. Please order them separately when the amplifiers are mounted in cascade.
| Appearance | Model No. | Description |
|---|---|---|
 |
MS-DIN-E | When cascading multiple amplifiers, or when it moves depending on the way it is installed on a DIN rail, these end plates clamp amplifiers into place on both sides. Make sure to use end plates when cascading multiple amplifiers together. [2 pcs. per set] |
