FM Series Digital Measure Counters

The FM series measure counters can preset multiple or divisor for 1 input pulse and display the calculated value in multiply-mode and divide-modes. The counters feature counting speeds of 1 cps, 30 cps, 300 cps, 2 kcps, and 5 kcps and decimal point display function (fixed decimal point). The FM series counters feature a standard DIN size of W 72 x H 72 mm and are available in 4-digit and 6-digit models.

Main Feature

  • Measure counting : multiply-mode/divide-mode
  • Operation modes : count-up, count-down, count-up/down
  • Counting speeds : 1cps/30cps/300cps/2kcps/5kcps
  • Parameter configuration settings : input/output operation mode, max. counting speed, decimal point location, OUT1/OUT2 output time (0.01 to 99.99 sec), no-voltage (NPN)/voltage (PNP) input selection, multiply-mode/divide-mode selection
  • 10 year memory protection (using non-volatile semiconductor)
  • Power supply : 100-240 VAC 50/60 Hz
Model Change and Discontinued Models
Type (FM) 4-Digit (W72×H72mm) 6-Digit (W72×H72mm)
Previous Upgrade Previous Upgrade
AC Type Single Preset F4AM FM4M-1P4 F6AM FM6M-1P4
Dual Preset F4AM-2P FM4M-2P4 F6AM-2P FM6M-2P4
Indicator Only F4BM FM4M-I4 F6BM FM6M-I4
AC/DC Type Single Preset F4AM Discontinued – –
Type (LM) 4digit (W144×H72mm) 6digit (W144×H72mm)
Previous Upgrade Previous Upgrade
AC Type Dual Preset L4AM-2P Discontinued L6AM-2P Discontinued
Indicator Only L4BM Discontinued L6BM Discontinued
AC/DC Type Indicator Only – – L6BM Discontinued

All discontinued models can be replaced by CT series counter/timers.
Some models may differ in size, Please check the detailed product dimensions.

Design
Ordering Information
Power Supply
CP1/CP2 Max Count Speed
Power Consumption (AC Type)
Input (Impedance/Residual Voltage)
One-Shot Output Time
Certifications
Dimensions

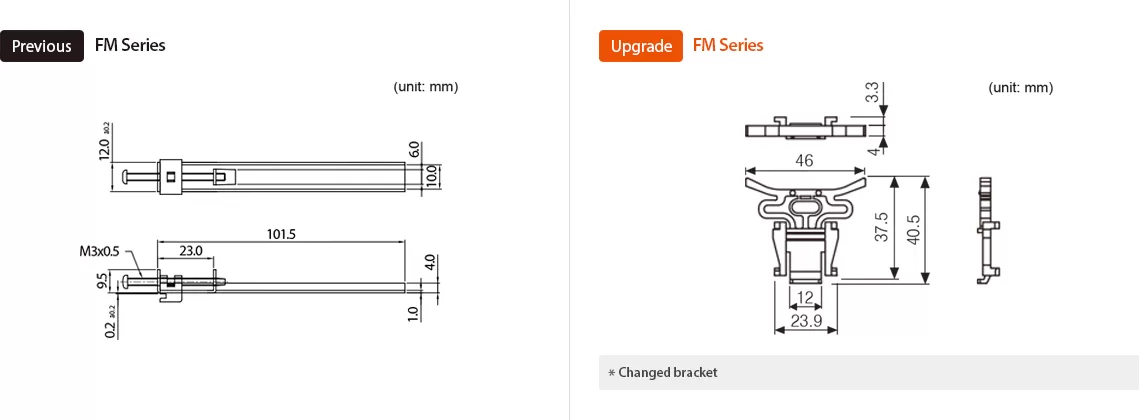

Bracket
Panel Cut-Out Dimensions
Connection Diagram
Input Logic Switch
Configuration Method
Decimal Point Display
