FXM/FXH Series Standard Digital Counter/Timers

The FXM/FXH series digital counter/timers integrate functions of both counters and timers. Counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps are available and various time setting ranges are also available for the timer function. Count-up, count-down, and count up/down modes are available for accurate measurement and display of various system configurations. Users can easily switch between NPN/PNP inputs using the attached DIP switch. The FXM/FXH series is available in 4-digit, 6-digit, and 8-digit models in 2 standard DIN sizes (W 72 x H 72, W 48 x H 96 mm)

Main Feature

  • Counting speeds : 1cps/30cps/2kcps/5kcps
  • Switch between counter and timer operation using DIP switch
  • No-voltage input(NPN) using DIP switch
  • Operation modes : count-up, count-down, count-up/down
  • Set decimal point, hr/min/sec display with RESET key



Counter

20 input modes, 18 output modes



Timer
  • Various output modes (16 output modes)
  • Various time setting ranges
    -8-digit models : 0.01sec to 99999hr 59.9min
    -6-digit models : 0.01sec to 99999.9hr
    -4-digit models : 0.01sec to 9999hr
  • Output model types : single preset, indicator only
  • Power supply: 100-240 VAC 50/60 Hz
Model Change and Discontinued Models
Type (FX/FXH) 4-Digit (W72×H72mm) 6-Digit (W72×H72mm) 4digit (W48×H96 mm)
Previous Upgrade Previous Upgrade Previous Upgrade
AC Type Single Preset FX4 FX4M-1P4 FX6 FX6M-1P4 FX4H FX4H-1PA
Dual Preset FX4-2P FX4M-2P4 FX6-2P FX6M-2P4 FX4H-2P FX4H-2P4
Indicator Only FX4-I FX4M-I4 FX6-I FX6M-I4 FX4H-I Discontinued
AC/DC Type Single Preset FX4 Discontinued FX6 Discontinued – –
Dual Preset FX4-2P Discontinued – – – –
Indicator Only – – FX6-I Discontinued – –
Type (FXL) 4-Digit (W144×H72mm) 6-Digit (W144×H72mm)
Previous Upgrade Previous Upgrade
AC Type Dual Preset FX4L-2P Discontinued FX6L-2P Discontinued
Indicator Only FX4L-I Discontinued FX6L-I Discontinued
  • * All discontinued models can be replaced by the CT series counter/timers.
  • * Some models may differ in size. Please check the detailed product dimensions.

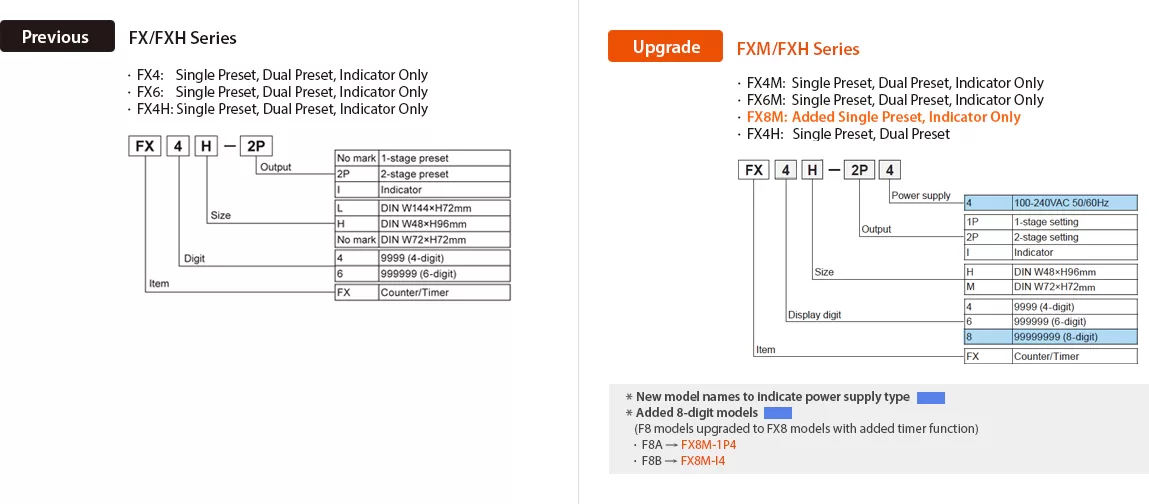

Ordering Information
Power Supply

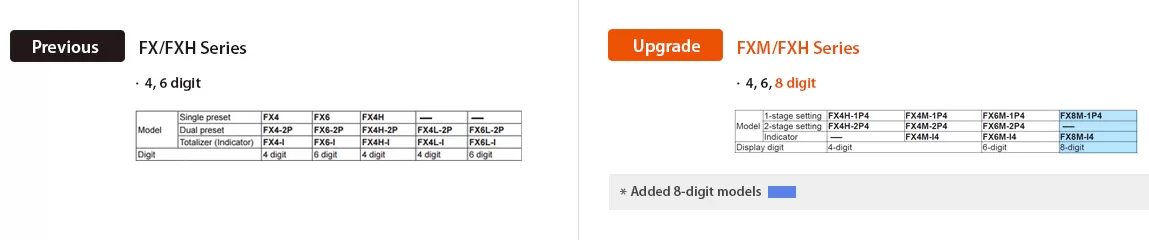

Display Digits

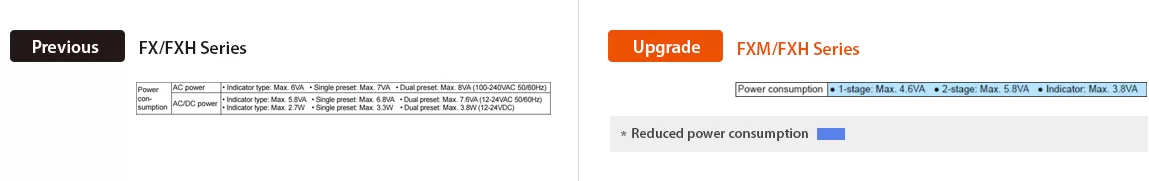

Power Consumption (AC Type)

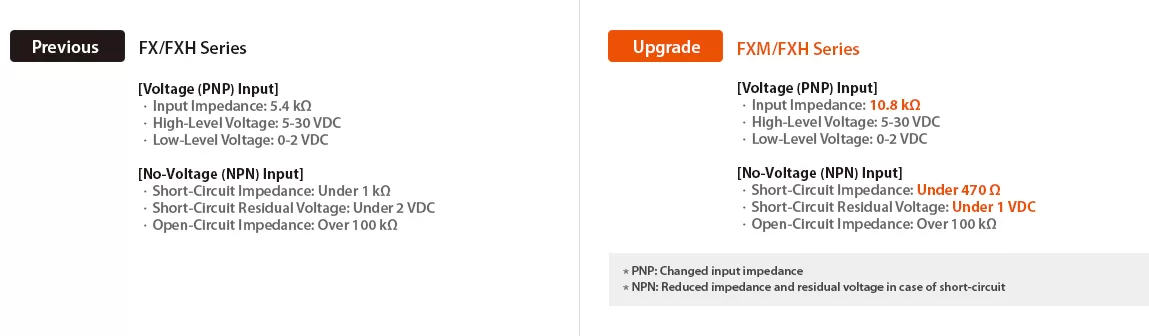

Input (Impedance/Residual Voltage)
Certifications
Dimensions

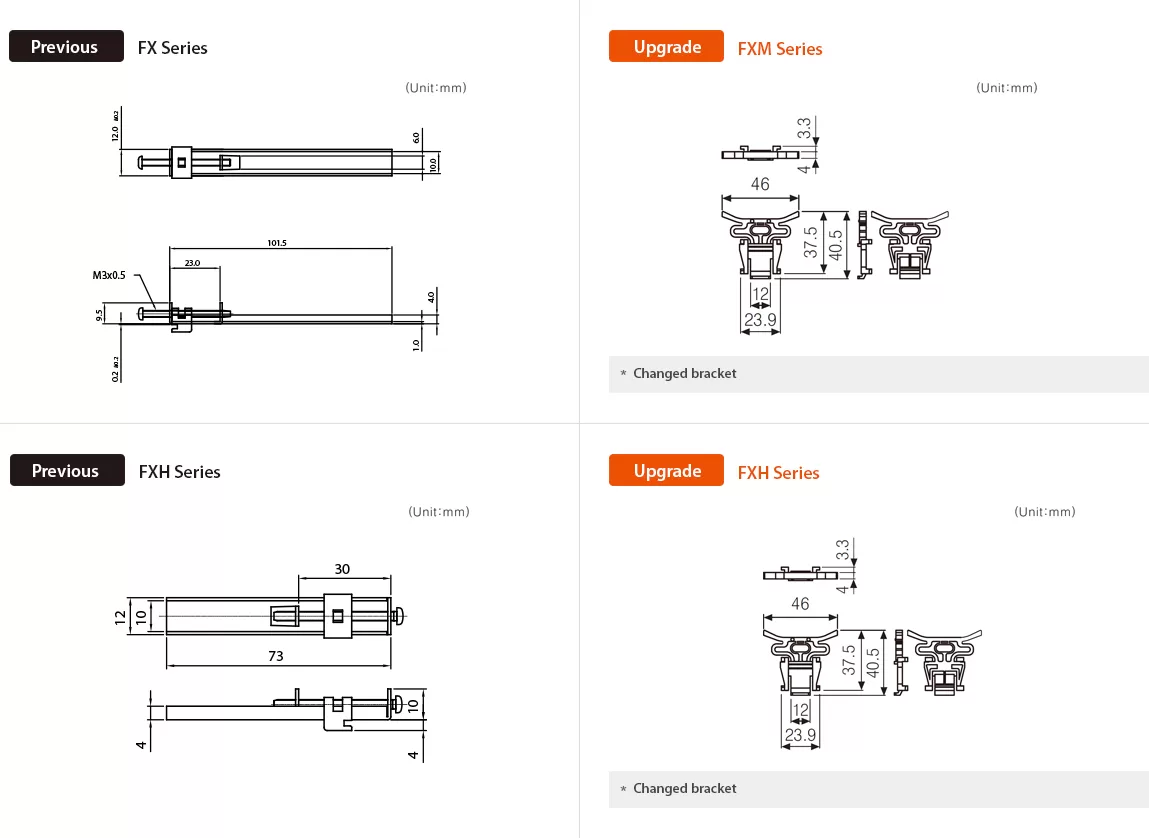

Bracket

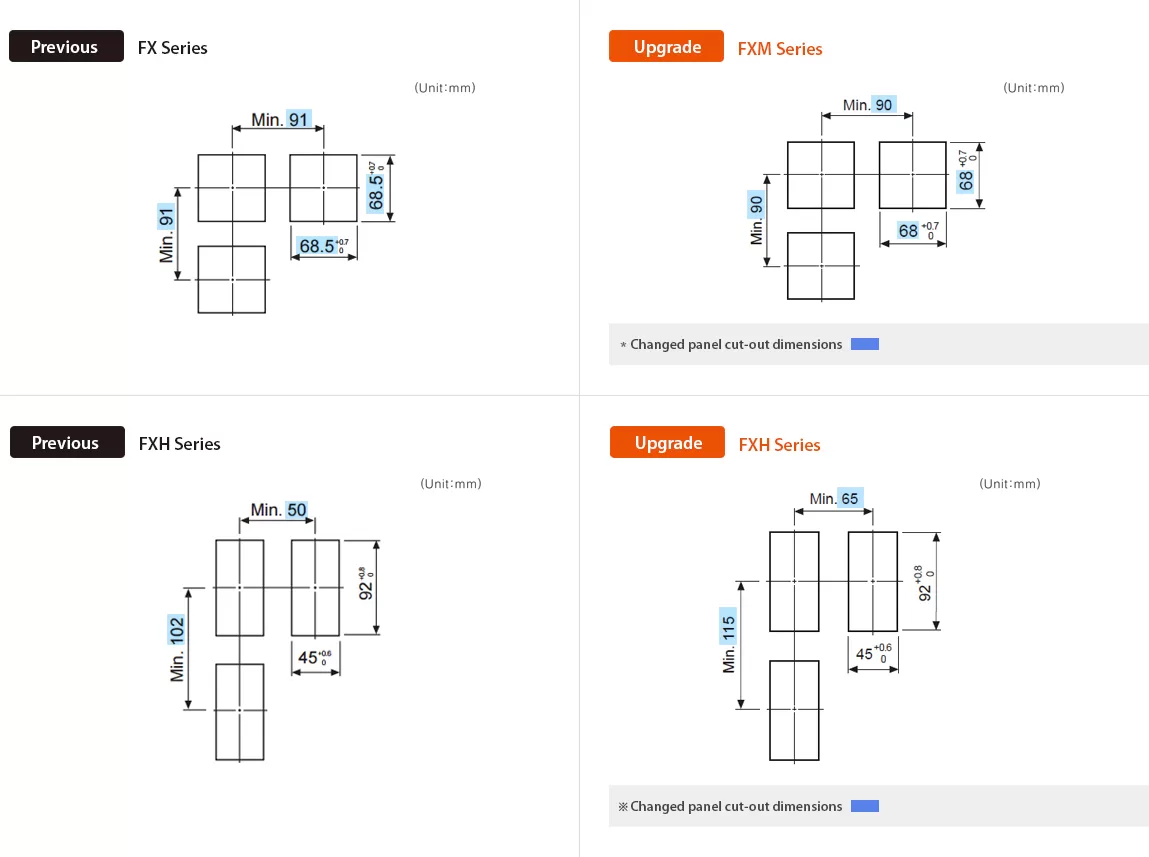

Panel Cut-Out Dimensions
Connection Diagram

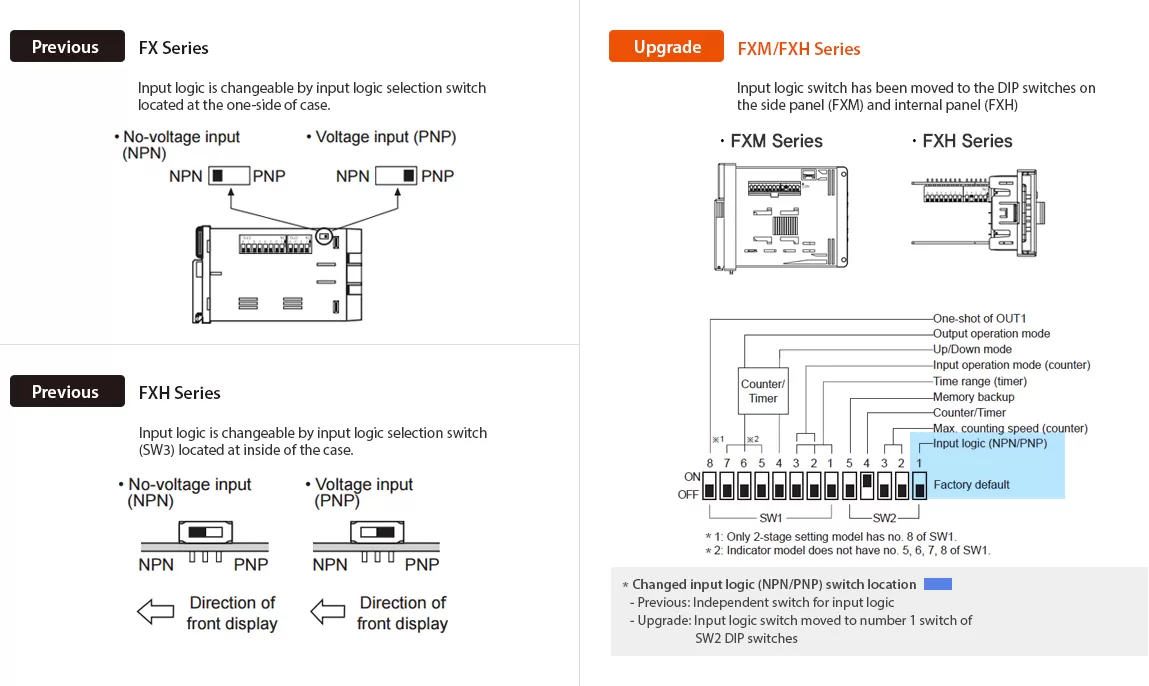

Input Logic Switch
DIP Switch Arrangement

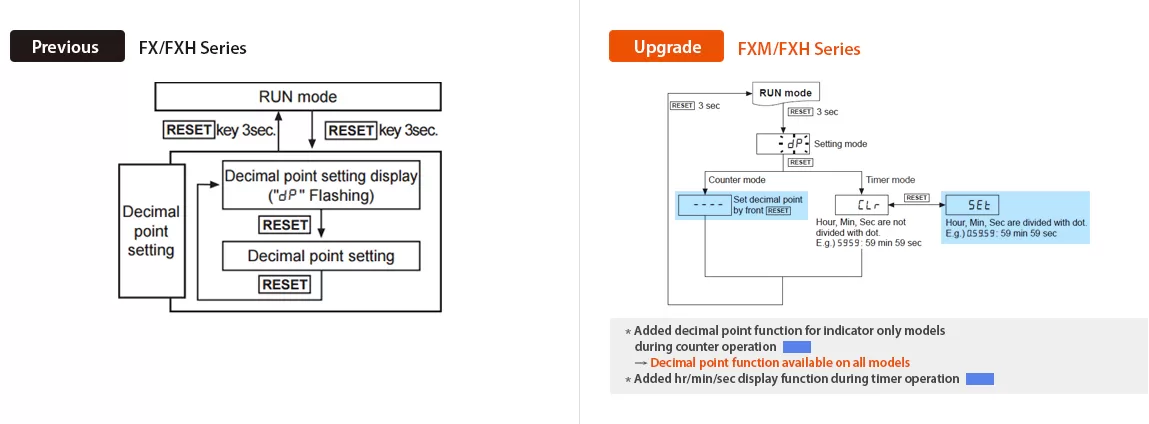

Decimal Point/Hr/Min/Sec Display
