FXS Series Compact Digital Counter/Timers

The FXS series compact digital counter/timers are integrated units with functions of counters and timers. Counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps are available along with various time setting ranges. Count-up, count-down, and count up/down modes are available for accurate measurement and display of various system configurations. The FXS series is available in 4-digit and 5-digit models in standard DIN size W 48 x H 48 mm.

Main Feature

  • Counting speeds : 1cps/30cps/2kcps/5kcps
  • Switch between counter and timer operation using DIP switch
  • Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
  • Operation modes : count-up, count-down, count-up/down
  • Set decimal point, hr/min/sec display with RESET key



Counter

20 input modes, 18 output modes



Timer
  • Various output modes (16 output modes)
  • Various time setting ranges
    – 5-digit models : 0.01sec to 99999.9hr
    – 4-digit models : 0.01sec to 9999hr
  • Output model types : single preset, indicator only
  • Power supply
    – 100-240 VAC 50/60 Hz (AC type)
    – 24 VAC 50/60 Hz, 24-48 VDC (AC/DC universal type)

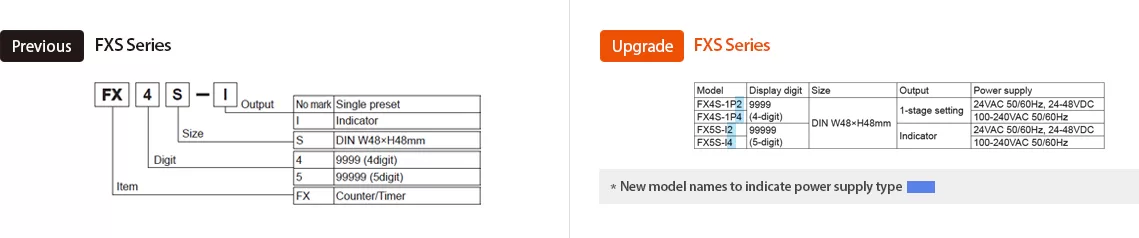

Model Change
Type 4-Digit (Single Preset) 5-Digit (Indicator Only)
Previous Upgrade Previous Upgrade
AC Type FX4S FX4S-1P4 FX5S-I FX5S-I4
AC/DC Type FX4S FX4S-1P2 FX5S-I FX5S-I2
Ordering Information
Power Supply
Power Consumption
Input (Added Voltage Input)
Certifications
Dimensions
Bracket
Panel Cut-Out Dimensions
Connection Diagram
Input Logic Switch
DIP Switch Arrangement
Decimal Point/Hr/Min/Sec Display
