General Purpose & Slim Body Area Sensor NA2-N

Slim body 13 mm 0.512 in
Maximum sensing height 540 mm 21.260 in

UL , CE Approved
CE : EMC Directive
UL : Recognition

Make sure to use safety light curtains when using a sensing device for personnel protection.
Refer to safety light curtains.

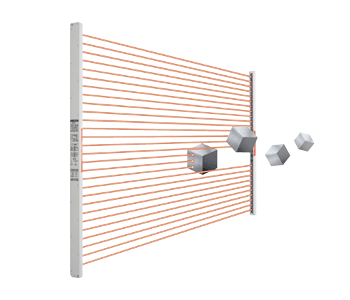

Maximum sensing height 540 mm 21.260 in (28 beam channels)

The thin resin case type area sensor has a sensing hight of 540 mm 21.260 in (28 beam channels), a beam pitch of 20 mm 0.787 in (minimum sensing object of ø30 mm ø1.181 in), and sensing range of 5 m 16.404 ft to meet a variety of needs.

Slim body of just 13 mm 0.512 in thick

The slim-bodied NA2-N series fits right in your equipment, since it is only 13 mm 0.512 in thick and 30 mm 1.181 in wide. It dose not get in the way of your access to the machine.

6 types of sensing height

In addition to the conventional 12, 16, and 20 beam channel types, this new lineup includes 8, 24, and 28 beam channel types. A wide model variation is provided with sensing heights from 540 mm 21.260 in (28 beam channels) to 140 mm 5.512 in (8 beam channels).

Clearly visible wide job indicator

Both the receiver and the emitter feature job indicators, 102 mm 4.016 in wide, with red bright LEDs.
When the sensing output and the job indicator input are connected, the job indicator can be used as a large operation indicator.

Interference prevention for parallel installation

By setting different emission frequencies for two sensors, mutual interference can be prevented. There is no problem even when the sensors are parallel installed for wide detections area coverage. Moreover, the set frequencies can be identified by how many times the emitting indicators is light up.

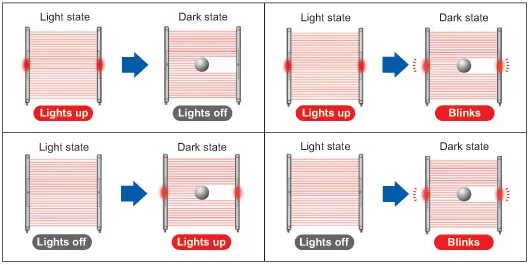

Selectable lighting pattern

The operation of the job indicator can be selected using the operation mode selection switch.

Convenient test input (emission halt) function

Beam output can be stopped via the input of an external signal. This is an useful test input (emission halt) function when beginning operation.

Note: The photo above shows an 8 beam channels type. The operation mode selection switch is equipped on the left side of the main body for models other than the 8 beam channels type.
