Single axis type
Direct installation using a hexagonal wrench
UL/C-UL , CE Approved
UL : Recognition
Features

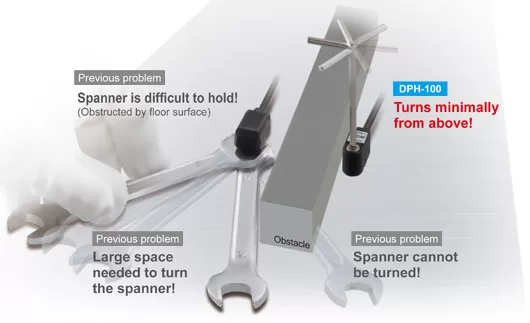

Breakthrough construction
Obstructions can be avoided and installation from above can be done much more easily using a hexagonal wrench. This also eliminates wasted installation space and contributes to a smaller installation footprint.
Flexible design! Sensor heads can be embedded
Because the bolts can be turned from directly above, embedding the sensor heads into narrow spaces is possible. In addition, the flat installation leaves no worries for danger of objects striking against the sensor and damaging it.

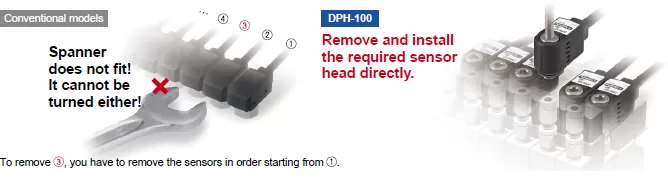

Quick maintenance
During maintenance, the sensor head needed to be removed can be easily removed from directly above.
Mounting space-saving
Space saving during installation.
Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.
Easy adjustment
Sensor heads can be turned after installation
After installation, you can alter the cable direction with the pressure port still secured in place. In addition, the cable does not get twisted during installation.
Independent use of sensor head possible
Separate analog voltage output for each sensor head
The analog voltage output from the sensor head can be picked up directly.
Sensor head line-up
3 types of pressure range
Stainless steel pressure ports come in 3 shapes.

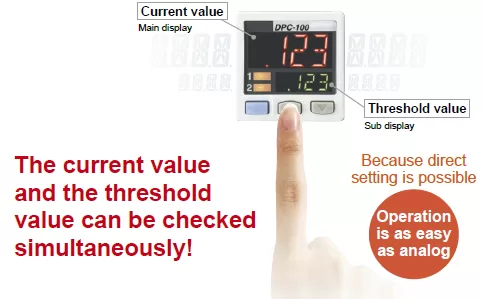

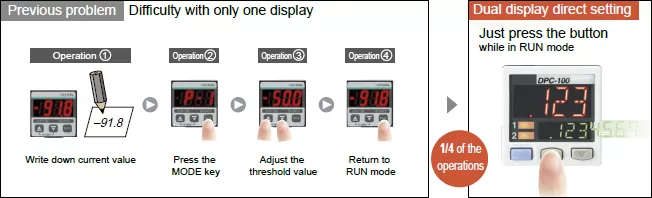

Dual display + Direct setting
Equipped with a 30 mm 1.181 in square compact-sized dual display.
“Current value” and “Threshold value” can be checked at the same time.
The threshold value can be changed in RUN mode directly.
High-speed response time at 500 μs
Reduced tact time. Response time contributes to even greater productivity.

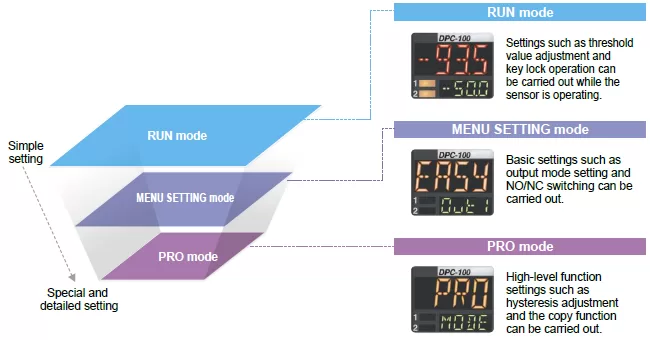

The controller’s setting operation mode has a 3-level configuration to suit the frequency of use
The setting levels are clearly separated into “RUN mode” for operation settings that are carried out daily, “MENU SETTING mode” for basic settings, and “PRO mode” for special and detailed setting. These make setting operations easy to understand and easy to carry out.
3-color display lets you view the controller status at a glance
The main display color switches between green and red in accordance with the ON / OFF status of output during RUN mode. In addition, the display always appears orange while setting is in progress, so that the status of the controller can be viewed at a glance.

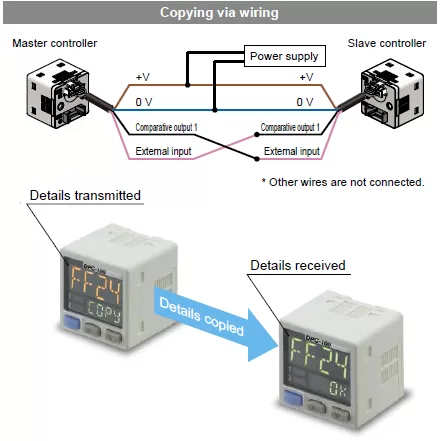

Copy function reduces man-hours and human error
Controllers can be connected to a master controller one by one, and a copy of the setting details for the master controller can be transmitted as data to the slave controllers. If making the same settings for multiple controllers, this prevents setting errors from occurring with the other controllers and also reduces the number of changes required to instruction manuals when equipment designs are changed.
Sensor head auto-recognition
The controller will automatically recognize sensor heads when they are connected, even for sensor heads with different rated pressure ranges. There is no need to use the controller to change settings.
1 model to suit a wide variety of applications [DPC-100 original functions]
Equipped with independent two output and three output modes
Equipped with two independent comparative outputs, and separate sensing modes can be selected for each of them.
Two comparative outputs are provided, so that one of the outputs can be used as a warning output. In addition, if an output is not being used, it can be disabled.
Equipped with auto-reference / remote zero-adjustment functions, More precise pressure management is possible with a minimum of effort
If the reference pressure of the device changes, the autoreference function partially shift the comparative output judgment level by the amount that the reference pressure shifts, and the remote zero-adjustment function can reset the display value to zero via external input. These functions are ideal for places where the reference pressure fluctuates wildly, or where fine settings are desired.
Sub display can be customized
The sub display can be set to indicate any other desired values or letters apart from the threshold value. This eliminates the need for tasks such as affixing a label to the device to indicate the normal pressure value.

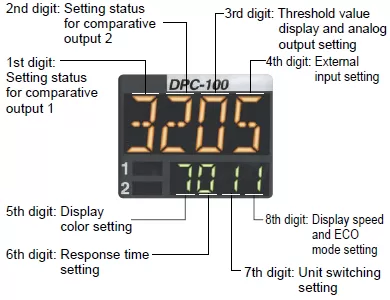

Setting details can be understood at a glance
The DPC-100 setting details appear in the digital display.
Because the settings are in numeric form that can be easily understood, it is useful for times such as when receiving technical support by telephone.
Tight installation to panels is possible
An exclusive mounting bracket (MS-DP1-2) that is suitable for 1 to 6 mm 0.039 to 0.236 in panel thickness is available.
An exclusive mounting bracket (MS-DP1-6) that supports tight installation is available
Space saving can also be obtained if an L-shaped mounting bracket is used.
Power supply cable can be connected with one-touch connection
The accessory connector attached cable (2 m 6.562 ft) can be connected easily with one-touch connection.
* Options: 5 m 16.404 ft type is also available.
Types without connector attached cable are also available [DPC-10□-J]
Commercially-available connectors can be used for cable connections. Only the required length of cable needs to be used, which contributes to a reduced amount of wastage for unneeded cable.
Order guide
Product Configuration
Sensor heads
| Type | Appearance | Rated pressure range | Model No. | Pressure port | Applicable fluid | |
|---|---|---|---|---|---|---|
| Compound pressure |
 |
–100.0 to +100.0 kPa | DPH-101 | R1/8 male thread + M5 female thread | Air, non-corrosive gas |
|
| DPH-101-M3 | M3 male thread | |||||
| DPH-101-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-101-R | R1/8 male thread + M5 female thread | ||||
| DPH-101-M3-R | M3 male thread | |||||
| DPH-101-M5-R | M5 male thread | |||||
| Positive pressure | 0 to +1.000 MPa | DPH-102(Note) | R1/8 male thread + M5 female thread | |||
| DPH-102-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-102-M5-R | M5 male thread | ||||
| Vacuum pressure | 0 to –101.0 kPa | DPH-103 | R1/8 male thread + M5 female thread | |||
| DPH-103-M3 | M3 male thread | |||||
| DPH-103-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-103-R | R1/8 male thread + M5 female thread | ||||
| DPH-103-M3-R | M3 male thread | |||||
| DPH-103-M5-R | M5 male thread | |||||
(Note): The bending-resistant cable type of DPH-102 is not available.
5 m 16.404 ft cable length type
5 m 16.404 ft cable length type (standard: 2 m 6.562 ft) is also available. When ordering this type, suffix “-C5” to the Model No. (e.g.) 5 m 16.404 ft cable length type of DPH-103-M5-R is “DPH-103-M5-R-C5”
Controllers
| Appearance | Model No. | Comparative output |
|---|---|---|
 * CN-66A-C2(Connector attached cable 2 m 6.562 ft) is attached. |
DPC-L101 | NPN open-collector transistor |
| DPC-L101-P | PNP open-collector transistor |
Type without connector attached cable
Type without connector attached cable is available. When ordering this type, suffix “-J” to the Model No.
(e.g) Type without connector attached cable of DPC-L101-P is “DPC-L101-P-J”.
Accessory
・CN-66A-C2 (Connector attached cable 2 m 6.562 ft)
