Thin body controller can do cascade connection and communication with upper devices
CE Approved
Features
Works like a fiber sensor
DPS-400 series accommodates to the requirements for pressure sensors at production site such as miniaturization of sensors for downsizing equipment, convenient shape to fit into machines, and reduction of man-hours when it comes to replacement.
■Sensor head DPH-100 series
Direct installation using a hexagonal wrench
・Direct mounting from above
・Installation in narrow spaces
・Extended freedom of layout
・Single axis type free turning structure
■Controller DPS-400 series

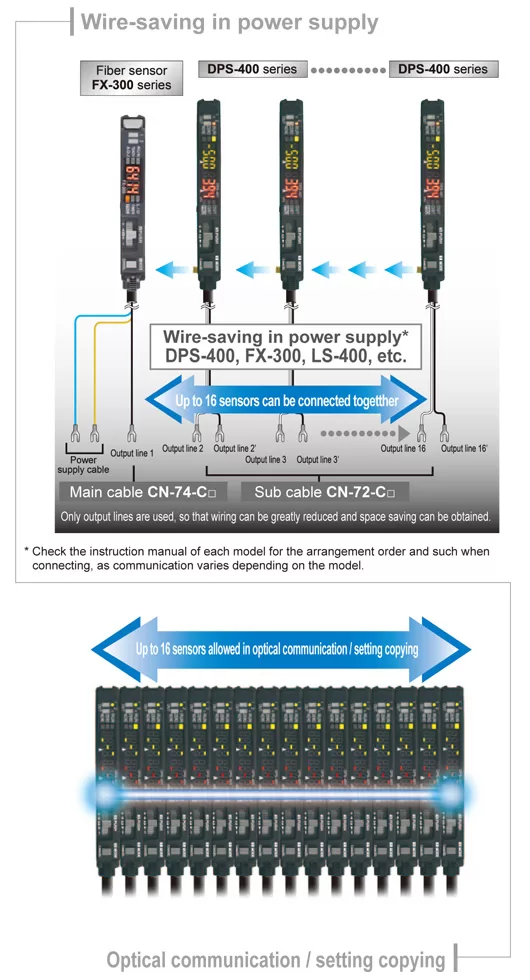

Thin body (t10 mm t0.394 in) and multi-unit connection on a DIN rail helps to downsize equipment for better construction.
Current value and threshold value can be checked simultaneously on the dual display
The controller is equipped with a 4-digit dual digital display. Because the threshold value can be adjusted while checking the “current value (current pressure value)”, direct setting and checking of the “threshold value” is made smoothly without having to switch screen modes.

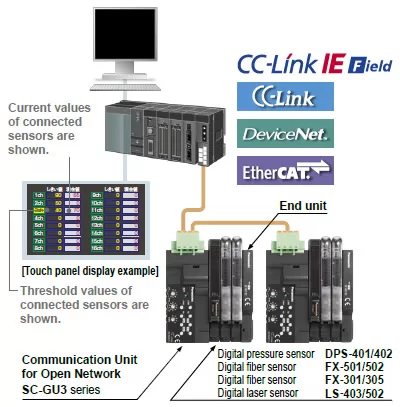

Network communication
Can connect to Open Network CC-Link IE Field / CC-Link / DeviceNet / EtherCAT via Communication Unit for Open Network SC-GU3 series. Monitoring and various settings can be done from PLC, PC, etc
* CC-Link and CC-Link IE Field are a registered trademark of Mitsubishi Electric Corporation. DeviceNet is a registered trademark of ODVA (Open DeviceNet Vender Association, Inc.). EtherCAT is a registered trademark of Beckhoff Automation GmbH.
* Refer to SC-GU3 series.
Ultra high-speed response time at 150 μs
Ultra high-speed response time contributes to even greater productivity.
Independent dual outputs and five output modes equipped
The sensor is equipped with two independent comparative outputs in which separate sensing modes can be selected.
(1) EASY mode
This mode is used for comparative output ON / OFF control.
(2) Hysteresis mode
This mode is used for setting comparative output hysteresis to the desired level and for carrying out ON / OFF control.
(3) Window comparator mode
This mode is used for setting comparative output ON or OFF at pressures within the setting range.
(4) Forced output ON mode
The comparative outputs are forcibly maintained at ON irrespective of the set values.
(5) Forced output OFF mode
The comparative outputs are forcibly maintained at OFF irrespective of the set values.
Space saving during installation.
Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.
Hexagonal wrench installation saves man-hours and spaces [Industry first*]
Using a hexagonal wrench, obstructions can be avoided and installation can be done easily by turning the bolt from above.

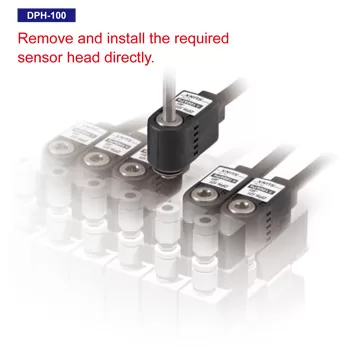

Quick maintenance
During maintenance, the sensor head needed to be removed can be easily removed from directly above.
Mounting shape at 14 mm 0.551 in
Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.
Order guide
Controllers
| Type | Appearance | Model No. | Applicable sensor head |
Output | Connection method |
|---|---|---|---|---|---|
| For compound pressure / vacuum pressure |
 |
DPS-401 | DPH-101□ DPH-103□ |
NPN open-collector transistor two outputs |
Use optional quick-connection cable (4-core) |
| For positive pressure | DPS-402 | DPH-102□ |
Quick-connection cables
Quick-connection cable is not supplied with the controller. Please order it separately.
| Type | Model No. | Description | |
|---|---|---|---|
| Main cable (4-core) |
CN-74-C1 | Length: 1 m 3.281 ft | 0.2 mm2 4-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-74-C2 | Length: 2 m 6.562 ft | ||
| CN-74-C5 | Length: 5 m 16.404 ft | ||
| Sub cable (2-core) |
CN-72-C1 | Length: 1 m 3.281 ft | 0.2 mm2 2-core cabtyre cable, with connector on one end Cable outer diameter: ø3.3 mm ø0.130 in |
| CN-72-C2 | Length: 2 m 6.562 ft | ||
| CN-72-C5 | Length: 5 m 16.404 ft | ||
(Note): The material of Quick-connection cable will be changed from production in March 2013, as soon as the previous ones are shipped out.
・Conductor cross-sectional area has been changed from 0.15mm2 to 0.2mm2.
・Sheath diameter has been changed from ø3.0mm to ø3.3mm.
Recommended e-CON connector
Manufactured by 3M Japan Limited
Adapted connector:37104-3101-000 FL
End plates
End plates are not supplied with the controller. Please order them separately when the controllers are mounted in cascade.
| Appearance | Model No. | Description |
|---|---|---|
 |
MS-DIN-E | When cascading multiple controllers, or when it moves depending on the way it is installed on a DIN rail, these end plates clamp controllers into place on both sides. Make sure to use end plates when cascading multiple controllers together. |
Sensor heads
| Type | Appearance | Rated pressure range | Model No. | Pressure port | Applicable fluid | |
|---|---|---|---|---|---|---|
| Compound pressure |
 |
–100.0 to +100.0 kPa | DPH-101 | R1/8 male thread + M5 female thread | Air, non-corrosive gas |
|
| DPH-101-M3 | M3 male thread | |||||
| DPH-101-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-101-R | R1/8 male thread + M5 female thread | ||||
| DPH-101-M3-R | M3 male thread | |||||
| DPH-101-M5-R | M5 male thread | |||||
| Positive pressure | 0 to +1.000 MPa | DPH-102(Note) | R1/8 male thread + M5 female thread | |||
| DPH-102-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-102-M5-R | M5 male thread | ||||
| Vacuum pressure | 0 to –101.0 kPa | DPH-103 | R1/8 male thread + M5 female thread | |||
| DPH-103-M3 | M3 male thread | |||||
| DPH-103-M5 | M5 male thread | |||||
| Bending-resistant cable |
DPH-103-R | R1/8 male thread + M5 female thread | ||||
| DPH-103-M3-R | M3 male thread | |||||
| DPH-103-M5-R | M5 male thread | |||||
(Note): The bending-resistant cable type of DPH-102 is not available.
5 m 16.404 ft cable length type
5 m 16.404 ft cable length type (standard: 2 m 6.562 ft) is also available. When ordering this type, suffix “-C5” to the Model No. (e.g.) 5 m 16.404 ft cable length type of DPH-103-M5-R is “DPH-103-M5-R-C5”
