ADIO Series Remote I/O Boxes

The MD5 series 5-phase stepper motor drivers allow extremely precise motor control with low mechanical noise and low vibration operation. The isolated photocoupler input design minimizes influence from electrical noise. The motors also feature various built-in functions including auto current down and self-diagnosis. The microstepping drive models offer low-speed rotation and extreme precision with up to 250 division control.

Main Feature

  • Upper level communication protocol: EtherCAT, EtherNet/IP, PROFINET
  • Lower level communication protocol: IO-Link ver. 1.1 (port class: Class A)
  • Housing material: Zinc die casting
  • Protection rating: IP67, IP69K (EtherCAT communication type model)
  • Daisy chain connection (network communication and power supply)
  • Maximum output current per port: 2 A
  • I/O port setting and status monitoring (cable short / disconnection, connection status, etc.)
at0io

I/O Link Communication

ethercat

EtherCAT. EtherNet/IP PROFINET Communication

daisy_chain

Daisy Chain Connection

distribution_box

Distribution Box Type

push_pull

Push-Pull Connector

at0io

Dedicated Software

protection-rating

Protection Rating

protection-rating-ip69k

Protection Rating

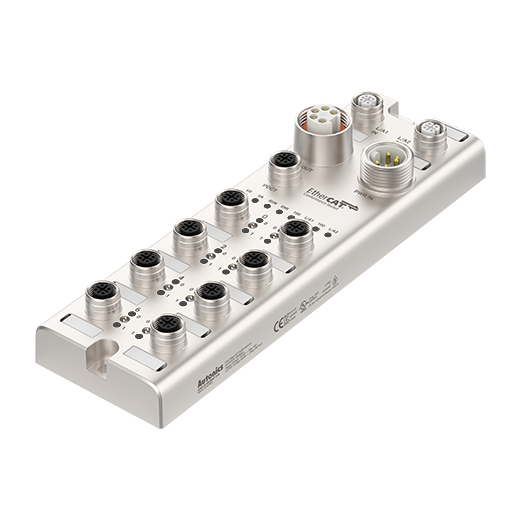

IO-Link Master Type Remote I/O Boxes

ADIO series can be used to exchange the sub-device signals including IO-Link communication and standard I/O to EtherCAT, EtherNet/IP and PROFINET communication.

Convenient Wiring with Daisy Chain Structure

Power supply and network communication can be connected in daisy chain method, for easier maintenance and wiring.

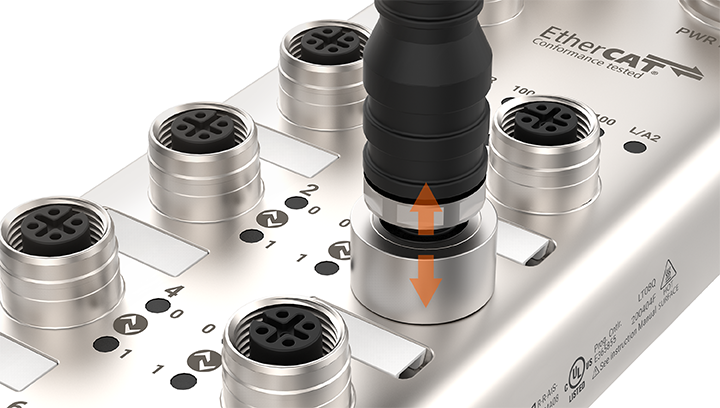

Push-Pull Connector Type Available

ADIO series supports both standard connector and push-pull connectors for easier connection and maintenance.

[Standard Connector Type]

[Push-Pull Connector Type]

Cable Connection Diagnostics

ADIO series can detect connection status of industrial network communication cables and I/O cables.

IP Address Setting Available

IP address can be set manually with rotary switches in EtherNet/IP and PROFINET type models without connecting to a PC.

Zinc Die-cast Housing and IP67, IP69K Protection Rating

Zinc die-cast external housing provides excellent immunity to impact and IP67, IP69K protection structure allows stable and error-free operation even in wet or dusty environments.

Dedicated Software atIOLink Provided

atIOLink is a comprehensive IO-Link management software which allows users to easily set up, diagnose, and manage IO-Link devices through PCs without connecting to PLCs.
