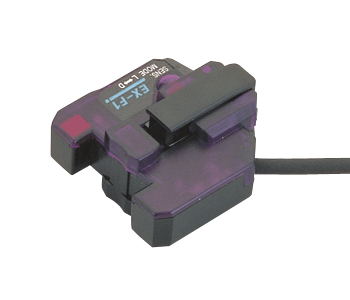

Reliable liquid level detection with amplifier built-in low-priced sensor
CE Approved
Features
Space-saving amplifier built-in type
EX-F1 amplifier built-in sensor saves space as there is no need to install a separate amplifier.
Easily mountable and adjustable
Just attach it on a pipe with the tying bands. The position can be easily changed with the release lever even after mounting, so that there is no need to cut the tying bands.
Low price
EX-F1 is very cost-effective.

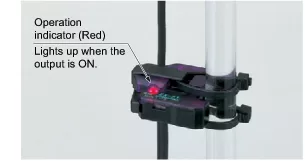

Easy to check operation Indicator
The operation can be checked at a glance from different directions.
Operation mode switch
Either Light-ON or Dark-ON can be selected by a switch. This is useful to check the operation during installation because it forces the output to be turned ON or OFF even without the liquid being inside the pipe.
Order guide
Leak detection sensors
| Type | Appearance | Sensing object | Applicable pipe diameter | Model No. | |
|---|---|---|---|---|---|
| Amplifier built-in pipe-mountable |
 |
Liquid (Note 1) |
Outer dia. ø6 to ø13 mm ø0.236 to ø0.512 in transparent pipe [PFA (Fluorine resin) or equivalently transparent pipe, wall thickness 1 mm 0.039 in (Note 2)] |
EX-F1 | |
| 5 m 16.404 ft cable length type |
EX-F1-C5 | ||||
Note 1: Unclear or highly viscous liquid may not be detected stably.
Note 2: Do not use the sensor with pipes other than the above specified.
