Air-gun type ionizer that can remove dust in a single burst using pulsed ion air


CE Approved
Features
Three discharge modes

The EC-G02 features two pulse air modes in addition to the standard continuous mode.

The EC-G02 features a highbrightness white LED above the ionized air outlet, allowing you to target and spray dust revealed by the light with a stream of ionized air.
Compact, highly usable design
Additionally, since the lightweight unit weighs just 270 g, it reduces stress on the operator, even when used for extended periods of time.
Ultra-compact design accurately removes charges of objects even from narrow spaces
The main unit is merely 109 x 27 x 28 mm 4.291 x 1.063 x1.102 in, so it can easily be combined with other devices and also be installed as an add-on. Furthermore, the highvoltage power supply is built-in, so no extra space is required except for the ionizer itself.

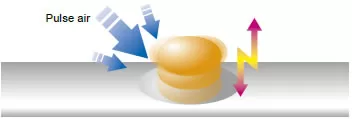

Improved dust removal effectiveness thanks to pulse (intermittent) air
Since pulse air causes dust to oscillate and lifts it up, even difficult-to-dislodge dust inside concave pockets can be easily removed. The EC-G02 can deliver greater dust removal effectiveness than continuous airflow models.

External input
External input allows the unit to be used in combination with a foot switch or other device.
No-oil compliance
All parts along the air path (air nozzle, solenoid valve, joints, etc.) are no-oil compliant.
Order guide
| Type | Appearance | Charge removal time (±1,000V→±100V) |
Model No. |
|---|---|---|---|
| Gun type | ![]() |
0.5 sec. approx. or less (Note 1) | EC-G02 |
| Note:1) | Typical value for pulse air mode: CONT at 100 mm 3.937 in from the front of discharge nozzle at an applied air pressure of 0.50 MPa. |
|---|
Accessories
|
Discontinued products
| * | Substitute products will not guarantee the specifications of discontinued products. Please check the specification details from catalog before use. |
|---|
| Discontinued products | Recommended substitute | |||||
|---|---|---|---|---|---|---|
| Product name |
Product number |
Last time buy | Product number |
Series | Remark | |
| Pulse Air-gun Ionizer | EC-G01 | April 30, 2013 To be discontinued |
![]() |
EC-G02 | Pulse Air-gun Ionizer EC-G | |
