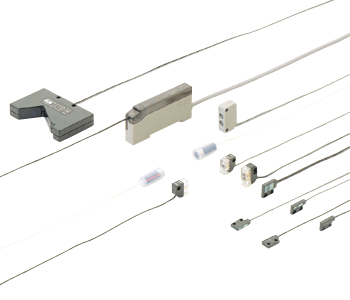

Slim Body Automatic Sensitivity Setting Photoelectric Sensor SU-7/SH

Simple and compact design

CE Approved
CE : EMC Directive(In combination with sensor heads SH-3□)

■Notice of change for conforming to the revised CE Mark related directive

Simple automatic sensitivity setting

Anyone can carry out the optimum sensitivity setting by simply pressing two buttons.

Quick wire connection

A snap of the lever secures the connection of the sensor head cables on the SU-7 amplifier. It is no longer required to strip the wire insulation. Further, the exclusive stripper (accessory) can be used to easily peel off the sensor cable outer sheath.

Thickness: 10 mm 0.394 in

Installation space can be greatly reduced as the SU-7 amplifier is just 10 mm 0.394 in thick.
(W10 x H31.5 x D67 mm W0.394 x H1.240 x D2.638 in)

Nine advanced functions for versatile sensing

1.Limit sensitivity setting [All models]
Sensitivity for detection of minute differences can be set by the push of one button without the presence of an object.

2.Sensitivity shift [All models]
The set threshold level can be shifted from the center towards either ON or OFF level.

3.Remote sensitivity selection [SU-79]
The amplifier stores four channels of sensitivity levels.
They can be selected by the remote inputs.

4.Remote sensitivity setting [SU-77]
The sensitivity level can be adjusted from a remote place.

5.External synchronization [SU-75]
The timing for sensing can be specified by an external input.

6.Test input (emission halt) [SU-75]
Convenient for start-up inspection.

7.Sensitivity margin indication [All models]
The number of blinks of the stability indicator indicates the degree of the sensitivity margin.

8.ON-delay / OFF-delay timer [SU-7] [SU-77] [SU-79] [SU-7J]
The timer can be selected for either ON-delay or OFF-delay of 0 to 5 sec.

9.Interference prevention [All models]
Two sensor heads can be mounted close together.

Ultra-slim type [SH-2□]

・Compact size: 0.3 cm3
・Thickness: 3 mm 0.118 in

・Versatile mounting
Diffuse reflective type sensor head
– Front sensing

Thru-beam type sensor head
– Front sensing
– Side sensing

Ultra-small type [SH-3□]

・Sensor head with indicator
An operation indicator, which enables easy checking of the operation at site, has been incorporated.

・2 m 6.562 ft long sensing range with red LED beam (SH-33R)
Visible red LED beam makes alignment easy.
