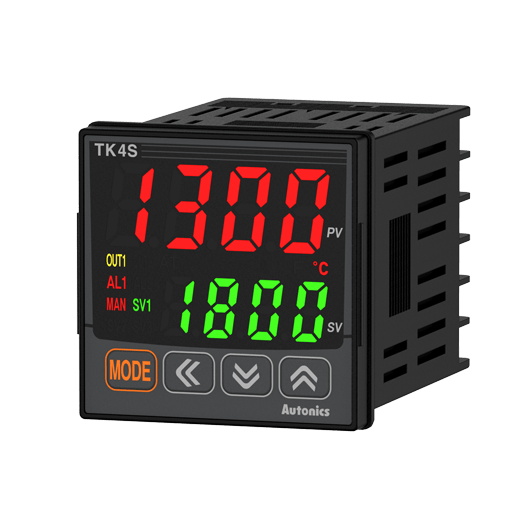

TK Series High Performance PID Temperature Controllers

• New line-up : AC/DC low voltage type (except TK4N models)
• 50ms high-speed sampling rate and ±0.3% display accuracy
• High luminance LED display with large PV and SV characters
• Simultaneous heating and cooling control function (patent) *
• Automatic/manual control option
• Switch between current output and SSR drive output
• SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
• Communication output models available : RS485 (Modbus RTU)
• Parameter configuration via PC (RS485 communication)
  • – DAQMaster software included (comprehensive device management software)
  • – Communication converter sold separately : SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
• User-friendly parameter features
  • – Parameter mask : hide unnecessary or seldom used parameters
  • – User parameter group : group frequently used parameters for easy access and configuration
• Various input types and temperature ranges
• Heater disconnect alarm function (CT input)

  – Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP

• SV preset function (up to 4 set values) using digital input terminals
• Available in various DIN sizes : (48×24, 48×48, 72×72, 96×48, 48×96, 96×96mm)
• Terminal protection cover sold separately : R◻A-COVER (except TK4N, TK4SP models)

*Korea Patent Registration 10-1002582, U.S.A. Patent Registration 8645000, Japan Patent Registration 3184816, China Patent Registration ZL200980111733.X, Vietnam Patent Registration 1-0012131, India Patent Registration 291573, Indonesia Patent Registration IDP0032166

High Speed Sampling

Simultaneous Heating & Cooling Control

Output selection

(Standard/Phase/Cycle Control)

RS485 Communication (Modbus RTU)

Dedicated Software

Set Parameters With PC

The 50ms sampling cycle rate allows ideal temperature control in applications requiring high-speed response rates.

The controllers can simultaneously control heating and cooling elements, providing efficient temperature control.

Depending on the application, users can select between current output and SSR drive output through parameter configuration.

Users can select from ON/OFF control, cycle control, and phase control using standard SSR drive output option. Precise and accurate control is possible at low costs.

Parameter configuration is easier with user-friendly features including parameter mask function and user parameter group function

Parameter configuration is easier with user-friendly features including parameter mask function and user parameter group function

Group frequently used parameters for easy access and configuration.

The TK4N models feature terminal protection covers to prevent electric shock and short-circuiting

• DAQMaster is comprehensive device management program to set parameter and manage monitoring data.
• Visit our website (www.autonics.com) to download user manual and comprehensive device management program.

Computer specification for using software
