Features three built-in contacts yet is among world’s smallest designs.
UL/C-UL , CE , TUV , UKCA Approved
Features
Features three built-in contacts yet is among world’s smallest designs.
Choose from two actuator entry slot orientations.
SG-A1 series come with cables pre-installed.
The SG-A1 series ship with bundled cables already connected internally.
Since there is no need to provide cables separately, and because they are already connected internally, the number of wiring man-hours is cut in half.
Can be installed on any door.

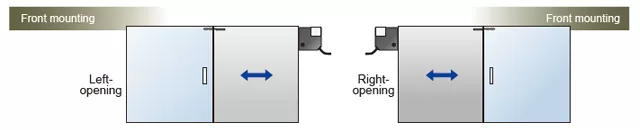

Sliding doors
Hinged doors
Order guide
Safety door switch
Actuators are not included with door switches and must be purchased separately.
| Door monitor contacts |
Cable length |
Model No. |
|---|---|---|
| 2NC | 1 m 3.281 ft | SG-A1-02-1 |
| 5 m 16.404 ft | SG-A1-02-5 | |
| 2NC + 1NO | 1 m 3.281 ft | SG-A1-12-1 |
| 5 m 16.404 ft | SG-A1-12-5 | |
| 3NC | 1 m 3.281 ft | SG-A1-03-1 |
| 5 m 16.404 ft | SG-A1-03-5 |
Actuators
Actuators are not included with door switches and must be purchased separately.
| Type | Model No. |
|---|---|
| Straight actuator | SG-K11 |
| Right-angle actuator | SG-K12(Note 1) |
| Right-angle actuator (with plate) | SG-K12A |
| Horizontal / vertical angle adjustable actuators (Note 2) |
SG-K13 |
| SG-K14 |
Notes:
1) The right-angle SG-K12 actuator’s tensile strength is 100 N. Using the device with a load in excess of this value may cause it to fall off the door. If you anticipate that the tensile load during use will exceed 100 N, use the right-angle (with plate) SG-K12A.
2) Choose a model after verifying the required direction of operation based on the relationship between the door and safety switch.
SG-K11
SG-K12
SG-K12A
SG-K13
SG-K14
