VG Series 0.4M Color Vision Sensors

• Vision sensors with integrated LED lighting
• Global shutter method for accurate image capturing with minimal motion blur
• Enhanced optical performance with light interference prevention technology (patent) *1
• Tight lens cover attachment allows application in environments with dust or shock (patent) *2
• Various inspection functions: alignment, brightness, contrast, area, edge, length, angle, diameter, object counting, color identification, color area, color object counting
• Inspection simulator function
• Set up to 32 separate workgroups (64 inspection points per workgroup)
• Save data to FTP servers
• Free vision sensor software included (Vision Master): inspection simulator function, manage parameters and workgroups, inspection results monitoring, send data to FTP, multilingual support, etc.
• IP67 protection structure (IEC standard)

*1. Korea Patent Registration 10-1894589, China Patent Application 201780083445.2, Vietnam Patent Application 1-2019-04162

*2. Korea Patent Registration 10-1778284

*Korea Design Registration 30-0949909

Measure High and Low Pressure

Integrated Lighting

Global Shutter Method

Set Workgroups

Save Data

Various Inspection Functions

Dedicated Software

Protection Rating

The VG series vision sensors utilize images captured by the integrated industrial camera lenses to determine the target object’s presence, color, size, shape, orientation, patterns and more. The integrated design featuring LED lighting, camera and lens allows users to set up and manage the units more easily compared to vision systems. The camera also utilizes global shutter method to capture accurate images, and the sensors feature 13 essential inspection functions for diverse applications.

The global shutter method allows the camera to capture images of fast moving targets with minimal distortion and motion blur.

The sensors feature 13 different essential inspection functions including color identification, color area, color object counting, alignment, brightness, contrast, area, edge, length, angle, diameter, object counting.

Inspects the color of the captured image’s ROI (region of interest) in reference to the color of the registered image’s ROI.

Inspects the color area of the captured image’s ROI (region of interest) in reference to the color area of the registered image’s ROI.

Inspects the number of specific colored objects in the captured image’s ROI (region of interest) in reference to the registered number of colored objects in the registered image’s ROI.

Inspects the characteristics of the captured image in reference to the registered image, comparing the location and angle of similar patterns.

Inspects the brightness of the captured image’s ROI (region of interest) in reference to the average brightness of the registered image’s ROI.

※ Brightness is identified after the color images are converted to monochrome images.

Inspects the contrast of the captured image’s ROI (region of interest) in reference to the contrast of the registered image’s ROI.

※ Contrast is identified after the color images are converted to monochrome images.

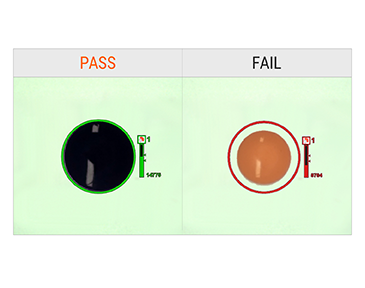

Inspects the area of the captured image’s ROI (region of interest) in reference to the area of the registered image’s ROI.

※ Area is identified after the color images are converted to monochrome images.

Inspects the direction of the edge of the captured image in reference to the edge location of the registered image.

Inspects the shape of the captured image in reference to the shape of the registered image.

Inspects the captured image in reference to the length set by the user between two edges of the registered image.

Inspects the captured image in reference to the angle set by the user between two edges of the registered image.

Inspects the captured image in reference to the two diameters set by the user for the registered image.

Inspects the number of objects in the captured image’s ROI (region of interest) in reference to the registered number of objects in the registered image’s ROI.

Users can set up to 32 different workgroups making and up to 64 inspection points can be set up per each workgroup.

With the simulator function, users can check and edit program settings or simulate inspections with saved images even when the VG series sensor is not connected.

The image data captured by the VG series can be transferred and stored to FTP servers. Depending on the configuration, users can choose to save all images, pass images only, or fail images only, making it easy to view, manage and analyze the stored data.

With 4 different color filters and 5 different polarizing filters available, the sensors offer high performance inspection in various environments. The filters can be replaced easily and are sold separately.

The Vision Master software allow users to directly set parameters, monitor inspection data and more with an easy-to-use, intuitive graphic UI design.

APC-1011 (sold separately) is a color LCD industrial panel PC which can be connected to VG series vision sensors to set up vision systems. The touchscreen display panels have integrated processors, allowing simple vision system setup without requiring separate PCs. The panels also support various connection interfaces including HDMI, USB, VGA, Ethernet, and more.

IP67 protection structure allows stable and error-free operation even in wet or dusty environments.
